GPS tracker for cars GPSM U9

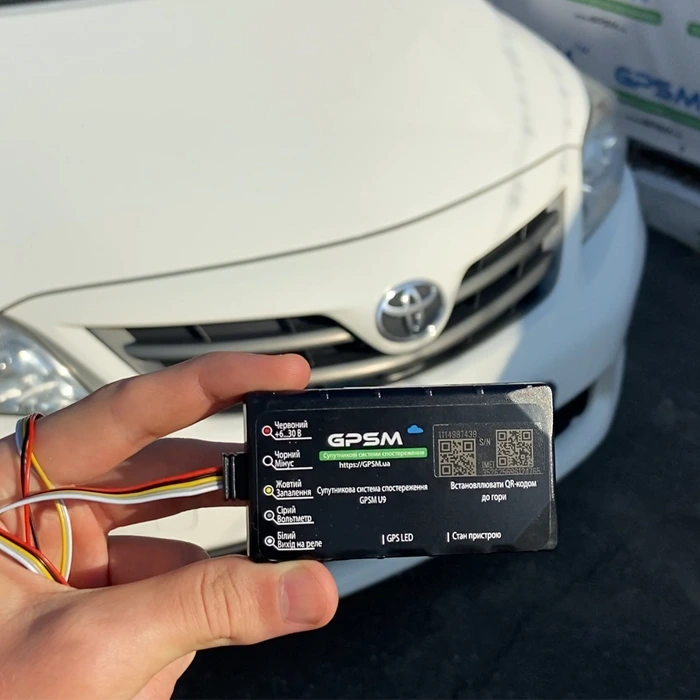

Vehicle GPS tracker GPSM U9

The GPS tracker will monitor the online location of the car, remotely block the engine, track the speed, number of stops, stops, mileage, save routes and movement history. Also, the device sends notification of critical situations (accident, hitting the chassis, disconnecting from the network, removing the battery, jamming the GSM signal, evacuation, etc.).

Auto GPS-trecker GPSM U9 image 1

The principle of operation of a GPS tracker for a car

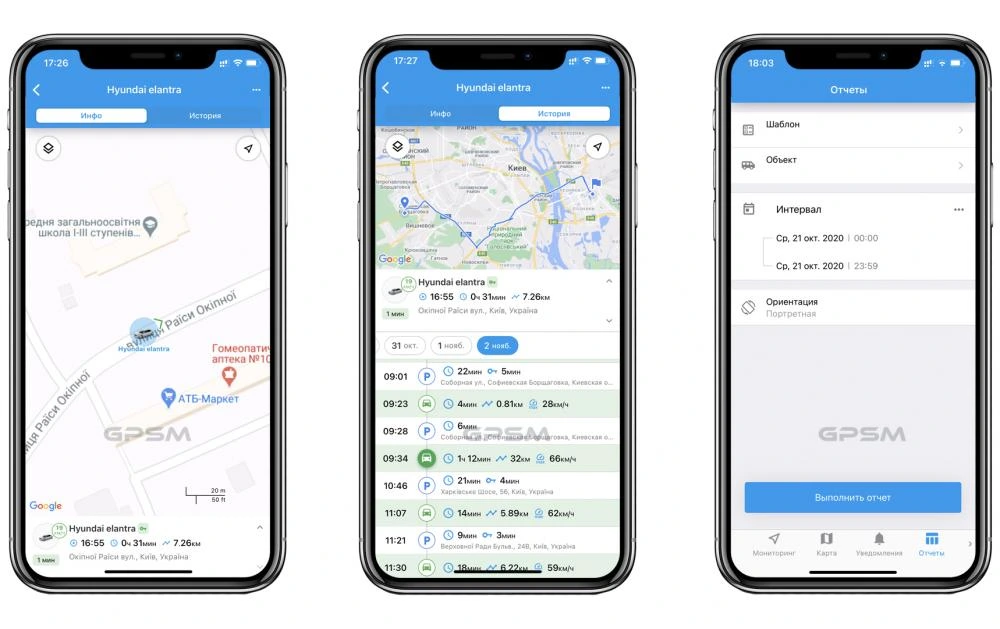

The GPSM U9 is equipped with GPS, GLONASS and GSM modules. The device determines its own location and sends the received information to the GPSM monitoring server. The data is processed and transferred to the mobile application and the satellite monitoring site, in which a personal account will be created for you after the purchase and installation of the device.

Auto GPS-trecker GPSM U9 image 2


A regular SIM card is installed in the GPS tracker. The range of the device is not limited, since the GSM coverage of the mobile operator is used. You can install a SIM card of any operator (Kyivstar, Vodafone, Lifecell). Also, the GPS tracker can work abroad using roaming. In case of low-quality coverage of the mobile network, the tracker will save the data on the route of movement to the built-in memory card with a volume of 128 MB, and when the connection is restored, it will transfer the information to the server without losing the trajectory.


GPSM U9 is suitable for any vehicle, regardless of its model, year of manufacture and dimensions: cars, trucks, fixed-route taxis, buses, minibuses, agricultural machinery, construction machinery, motorcycles, mopeds.

GPS tracker GPSM U9 does not affect the operation of on-board systems, cannot be detected using computer diagnostics, therefore it does not affect the vehicle's warranty.

Remote engine blocking

The engine is blocked by breaking the ignition supply circuit using the control relay. To stop the car, it is enough to send a command from the mobile application, the GPSM U9 GPS tracker will start measuring the vehicle's speed and when the speed drops to 5 km per hour or less, the tracker breaks the ignition supply circuit and the car stops.

Auto GPS-trecker GPSM U9 image 3

The engine lock and unlock function is activated in the Local GPSM mobile application. To block you need to press the "Block" button, to unblock you need to press "Unblock".


Also, it is possible to block and unblock the engine with an SMS command. It is impossible to start the car until the second SMS command is received, which cancels the blocking.


After installation work, the client is provided with a login and password to enter the personal account of the GPSM monitoring system.

GPS monitoring software

Local GPSM is a modern vehicle and personnel GPS monitoring tool designed to track the location of objects, as well as control their parameters and condition. The monitoring server saves the history of moving objects and the state of their parameters for 365 days. Includes WEB interface and Android and IOS mobile applications. The cost of the subscription fee is according to the tariffs on this page.

Auto GPS-trecker GPSM U9 image 4

Main functions:

  1. Car location control in real time.
  2. Exact mileage and mileage.
  3. Reports on traffic routes, trips, parking lots, stops.
  4. Tracking speed.
  5. Control of ignition and engine running time.
  6. Remote blocking of the engine.
  7. Geofences.
  8. Control of aggressive driving.
  9. Evacuation, road accident, towing notification.
  10. Preservation of history 1 year.
  11. Export of reports to PDF, Excel, integration with 1C.

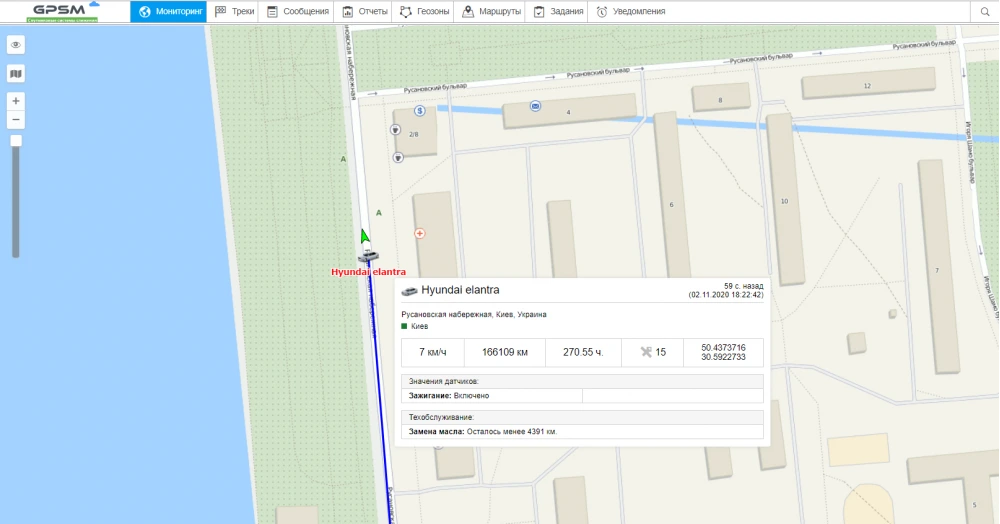

Object on the map in real time

The "Monitoring" tab contains the main functions of GPS monitoring. Here you can watch the movement of the object on the map, the address of the location of the transport in real time.Auto GPS-trecker GPSM U9 image 5

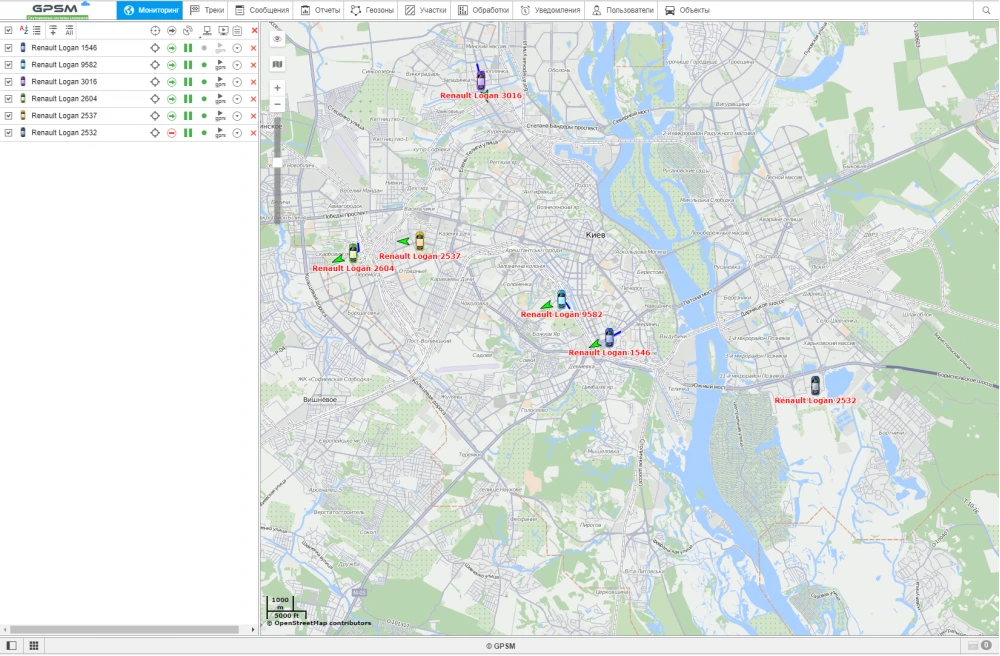

An unlimited number of cars can be added to one account:

Auto GPS-trecker GPSM U9 image 6

(Local GPSM web interface)

GPSM mobile app for iOS and Android

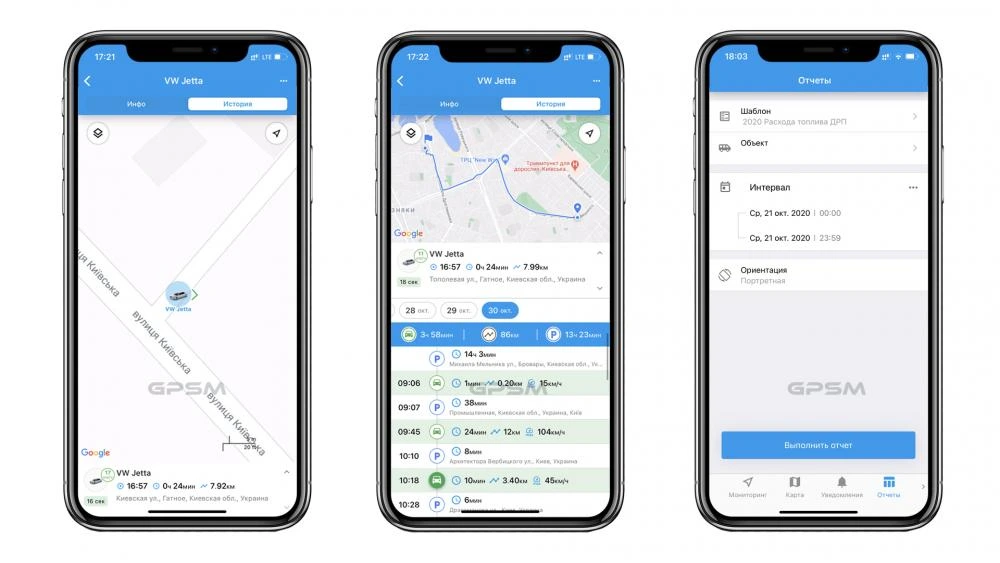

The Local GPSM mobile application provides the ability to track vehicles in real time, shows information from fuel sensors (the amount of fuel in the tank, consumption, refueling, drains), displays data on mileage, trips, routes, parking. Sends event notification to smartphone. Creation of reports in PDF.

Auto GPS-trecker GPSM U9 image 7

Local GPSM mobile app

Event notification

You can create various notifications (for example, about speeding, a reminder about technical inspection, leaving the geofence, loss of communication with satellites, jamming the GSM signal). With the help of the built-in accelerometer, you can receive notification of evacuation, accident, towing. The notification can be sent to the messenger Telegram, Viber, E-mail or via SMS. Also, push notifications in the mobile app.Auto GPS-trecker GPSM U9 image 8

Most popular reports:

1. Building a track - a line of movement of an object on the map. The track is built point-by-point and connected by segments into a single line. Markers can be applied to the track, indicating the places where parking, refueling and other events took place.

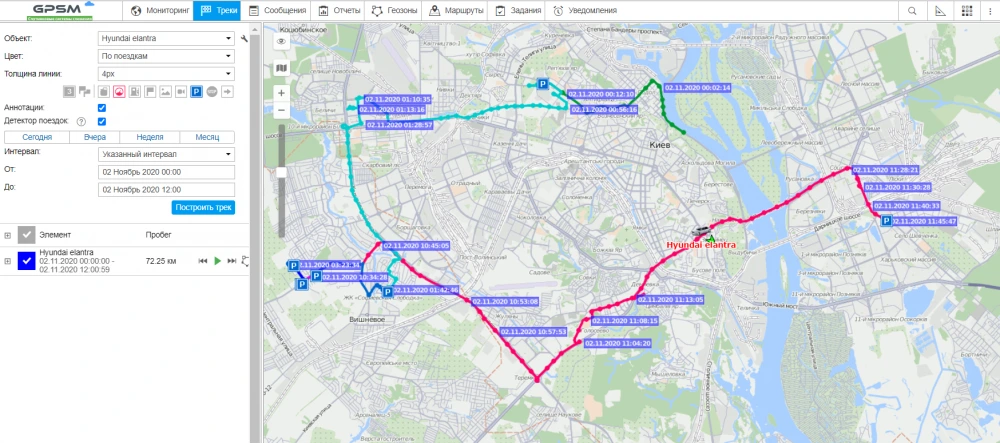

Travel track:

Auto GPS-trecker GPSM U9 image 9

Speed ​​track:

Auto GPS-trecker GPSM U9 image 10

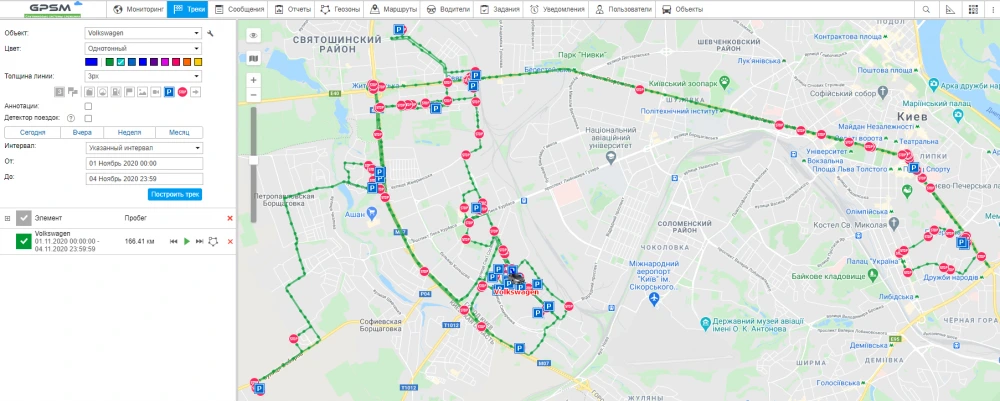

One color track:

Auto GPS-trecker GPSM U9 image 11

2. Trip report. In the "Trips" report, the data is formed with the indication of the time and place of the beginning of the trip, the time and address of the final position. Data on the duration of the trip, mileage, average speed, maximum speed are recorded.

General Statistics:

Auto GPS-trecker GPSM U9 image 12

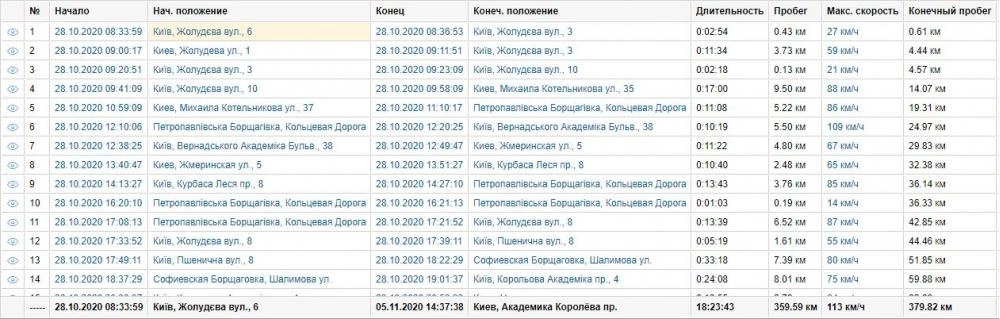

Trip count report:

Auto GPS-trecker GPSM U9 image 13

3. Report on stops. The report on stops differs from the vehicle stops in that this table contains information about downtime, the duration of which was less than 5 minutes. All downtime of a vehicle with a duration of more than 5 minutes are considered "Stops" and are formed in the "Stops" table.

Auto GPS-trecker GPSM U9 image 14


4. Report on parking. The parking report is formed by an intuitive principle: the “Parking” table contains data about the start of the parking, the duration of the downtime, the end of the downtime, data on the location of the parking is also recorded - the address is indicated.Auto GPS-trecker GPSM U9 image 15

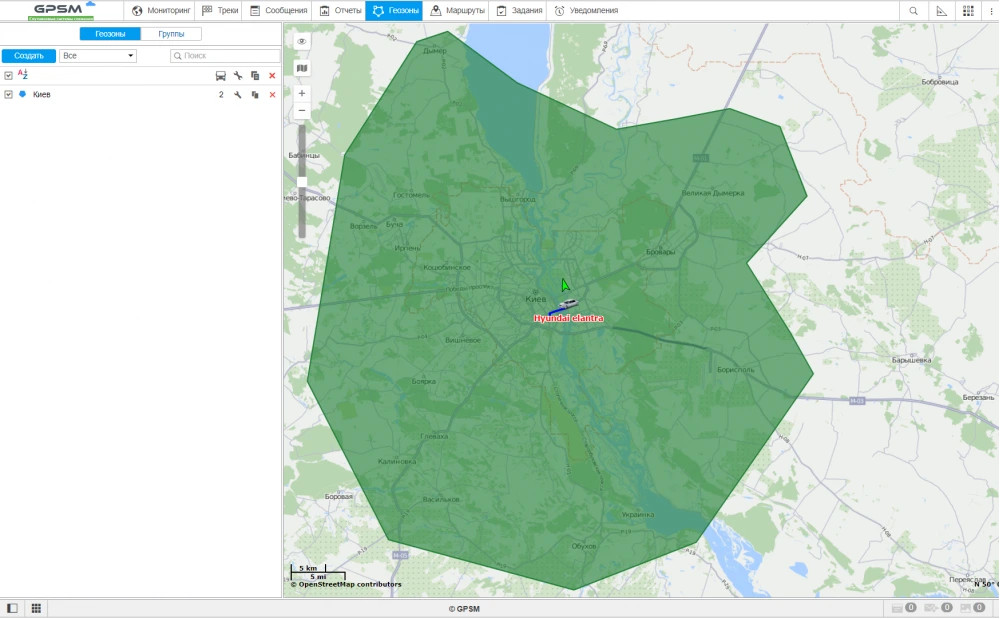

5. Report on visits to geofences. If you mark the objects or territories of interest to you on the map, then when passing through these selected areas, data on such an event will be displayed in the table of the "Visits to geofences" report.

Auto GPS-trecker GPSM U9 image 16

Installing a GPS tracker

Option 1. Call +38 (097) 696 84 07 (Viber, Telegram) and sign up for the installation, at the agreed time come to the GPSM service at the address: Kiev, Academician Korolev Avenue, 13b. Our specialists will make a covert installation, so that the device is difficult to find in the car. Installation takes about 45 minutes.

Auto GPS-trecker GPSM U9 image 17

Option 2. Installation in your city - 140 service stations throughout Ukraine. Our trusted service partners will install the device in your city or town.

Option 3. Self-installation. Our specialist will advise you.

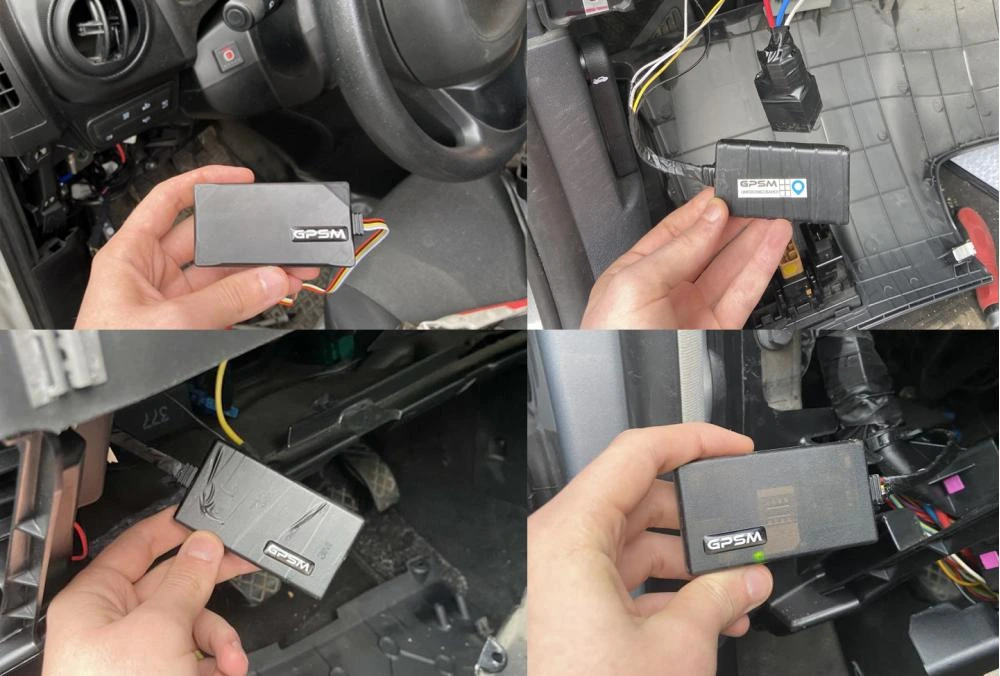

Places for fixing a GPS tracker in a car

Auto GPS-trecker GPSM U9 image 18

  • under the dashboard, torpedo, fuse box cover;
  • in the cabin under the seat, under the trim;
  • in the trunk, under the hood, under the bumper, under the bottom of the body.

The installation portfolio can be viewed on our Instagram or Facebook:

Auto GPS-trecker GPSM U9 image 19

Our office and service center:

Auto GPS-trecker GPSM U9 image 20

Specification
GPS module Built-in antenna
Number of channels 32
Sensitivity -162 dBm
Accuracy up to 2.5 meters
GSM module Built-in antenna
GSM 850/900/1800/1900 MHz
Coordinate time “Hot” start <1 sec
Warm start <25 sec
“Cold” start <35 sec
Data channels GPRS, SMS for tuning, voice call
GPRS Channel Class 12, TCP/IP
Technology GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Capacity built-in battery 170 мАч
Power supply voltage 9-36 V
High Voltage Protection
Sensors Vibration sensor
Traffic sensor
Towing detection sensor
Accelerometer
The algorithm for collecting coordinates By time interval
Based on distance
By interval interval
When you change the angle of movement
Interfaces 1 digital input
1 analog input
1 open collector digital output (connection of external relays, LED, buzzers)
1-wire (wired)
temperature sensor
1-wire identification keys
2 LED status indicators
Water and dust protection IP54
Current consumption (12V) 45 mAh
Memory 128 MB microSD card (located in the device, expandable up to 32 GB)
Bluetooth Yes
Weight, g 54 grams
Operating temperature – 25° ~ + 55°C
Packaging The device comes in plastic packaging
Dimensions (W x D x H) 79 х 43 х 12 mm
Installation Ultra-compact form factor and easy installation in areas with limited access
