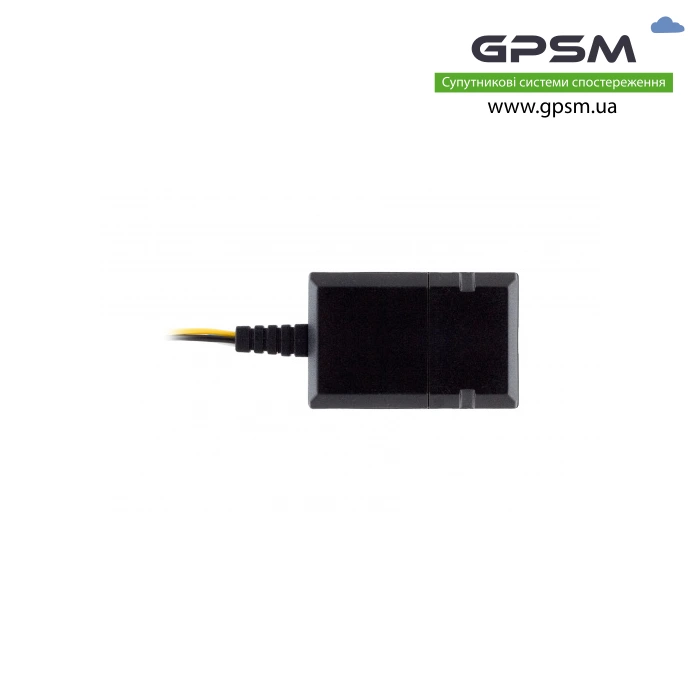

BI NOZZLE is a non-contact fuel consumption sensor for gasoline engine injectors, which reads the control signals of the engine injector. The sensor works on the principle of recording impulses from the fuel injector and transmitting information to the on-board terminal. After that, the counted impulses in the GPS / GLONASS monitoring system are converted into the actual fuel consumption of the vehicle.
This method of monitoring fuel consumption has several advantages:
- Fast and easy installation.
- Does not require any intervention in the electrical insulation of the injectors.
- Simple solution for fuel control.
Integration example
Main | |
Consumption current | 30 mA at 12V |
Dimensions | 30 х 50 х 15 mm |
Length of cabl | 3 m |
Output signal | pulse |
Power voltage | 12 V/24 V |
Protection class | IP30 |
Supply voltage range | 10 V to 50 V |
Weight, g | 90g |
Working humidity | 80±15 |
Working temperature | -40 to +85 |
