Display for fuel level sensors

The GPSM indicator displays accurate information about the fuel level, fuel level sensors connected to it (used on vans, trucks, special equipment, tanks, etc.). The device is a compact sensor with a relatively large contrast color display. In addition to fuel level sensors, the indicator can be connected to car GPS trackers.

The indicator displays information not only about the fuel level, but also the average hourly consumption. The brightness of the display is automatically adjusted thanks to the built-in light sensor.

Where it can be used

The fuel indicator can be used not only in cars, but also in ships, tanks, diesel-generator tanks, in any other tanks and containers. Most often, the device helps in cases where the car is leased or transferred from the driver to the driver. This is necessary in order to identify exactly how much fuel has been consumed since the transfer of the car to another driver, until the moment of return to the owner or tenant.

The color display shows:

1. fuel consumption (each tank), supports up to 8 simultaneously connected sensors;

2. liquid level in one tank or several totals;

3. displays messages.


General specifications

Electric:

• Supply  voltage- 9-30V.

• Current consumption up to 50mA.

• RS-485, RS-232 interface.


Display Specifications:

• Display type - TFT, with 65,000 colors;

• 1.8 inch size;

• 160x128 pixels - resolution.


Information display:

• The frequency of the volume display - 1 l.

• Averaging period from 0 to 100 seconds.

• Totally or separately up to 8 simultaneously connected level sensors.


Terms of Use:

• IP54 protection class.

• Working temperature of - 20 to + 50 degrees.

• Resistance to interference SAE J1113 / 2 1996.


Device

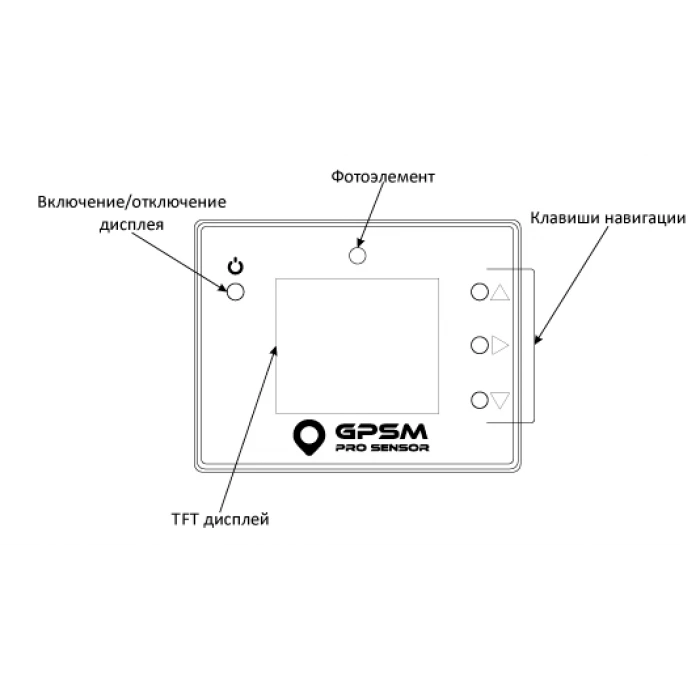

The display has a power button (on / off) of the display, navigation keys (3 grand.), Auto correction for the display brightness.

Includes:

1. Display with cable lengths up to 1 meter.

2. 4-pin connector (optional).


Warranty conditions:

The warranty period for the sensor is 12 months.
