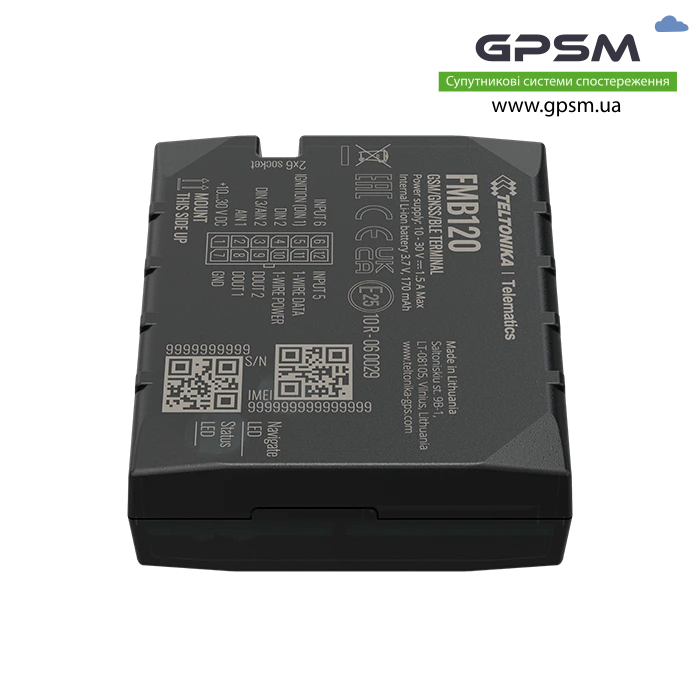

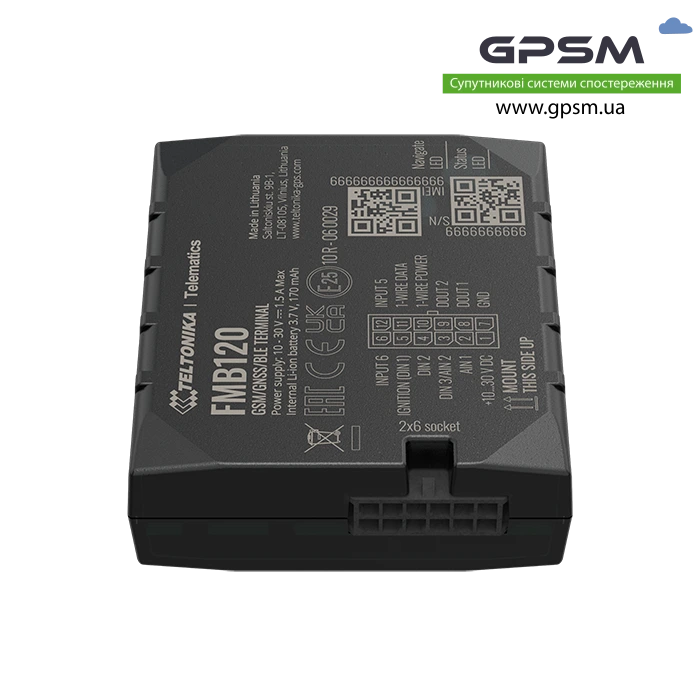

Teltonika FMB120 is a professional GLONASS / GPS tracker. Designed specifically for vehicle tracking and logistics solutions. Compact, has an extended set of connectors, is equipped with temperature control and the ability to connect CAN adapters.
FMB120 collects coordinates and other data and then transmits them to the server via GSM network. Suitable for tracking remote moving objects, including rental cars, taxis, public and private vehicles, and utility and logistics vehicles. Works great with refrigeration units thanks to temperature monitoring.
Support for 1-Wire protocol, which helps to identify driver tags. This makes it impossible for an unauthorized person to operate the car. Up to 500 iButton keys can be used. This protocol also makes it possible to connect a temperature sensor, which makes it easier to monitor the condition of the goods.

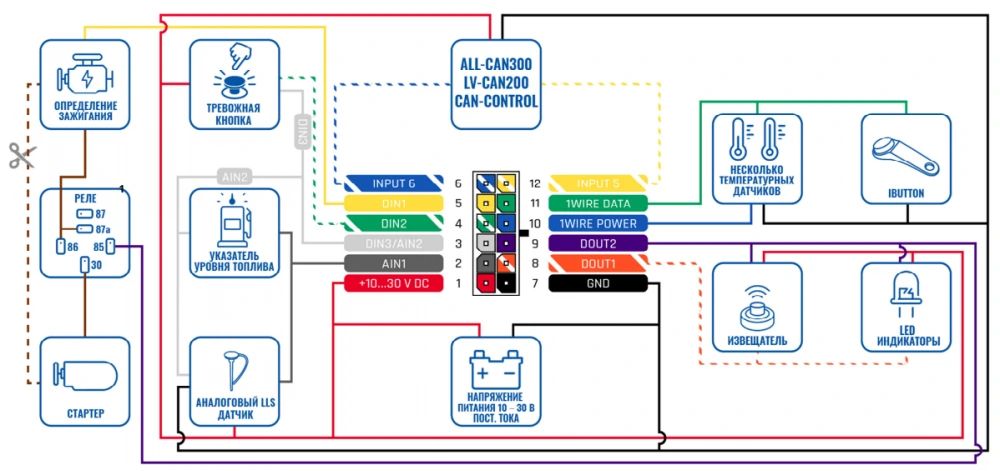

Offers an increased number of connectors (analog, configurable, 2 digital) for relays, LEDs, beeps, etc. To enhance the control of remote objects, you can now connect an analog fuel level sensor, door open / close indicators, temperature sensors and driver identifiers to the device.
Bluetooth 4.0 + LE version is 100% compliant with specification for temperature sensors, humidity indicators, headphone / headset, OBDII dongle, Inateck barcode scanners, BLE universal sensors and other external peripherals. There is a function of voice calls and it is possible to change the configuration settings.
It can operate autonomously from a power source, powered by a backup 170 mAh Li-Ion battery 3.7 V (0.63 Wh).
Functionality
- Reads data from CAN-bus (more than 1800 car models are supported).
- Possible scenarios: safe driving, speeding, vehicle towing detection, accident detection, autogeofence, geofence.
- Calculates GNSS fuel consumption.
- Enables control of digital outputs via a bell.
- Provides various energy saving modes: GPS sleep mode and online, deep and ultra deep sleep modes.
- Defines events and displays a notification about: blocking of the GSM signal; idle mode; reading iButton data; car towing mode; the collision that occurred.
Documentation
Drivers
Certificates
Specification | |
Baud rate | Hot start <1 s
warm start <25 s Cold start <35 s |
GPS module | Receiver 33 channels
GNSS receiver sensitivity -165 dBm |
Humidity | 5% to 95% non-condensing |
Accuracy | < 3 m |
GSM module | Quad-band 850/900/1800/1900 MHz |
Power consumption | At 12V <2 mA (Ultra Deep Sleep Mode)
At 12V <4 mA (Deep Sleep Mode) At 12V <5 mA (Sleep Online) At 12V <6 mA (GPS Sleep) At 12V <25 mA (nominal) |
Data channels | GPRS class 12 (up to 240kbps), GPRS Class B mobile station, SMS (text / data) |
Technology | GSM/GPRS/GNSS/BLUETOOTH |
Capacity built-in battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
Power supply voltage | 10-30V DC with overvoltage protection |
Interfaces | Digital input: 3
Digital output: 2 Analog input: 2 CAN adapter inputs: 1 1-Wire: 1 GNSS antenna: Internal GSM antenna: Internal USB: 2.0 Micro-USB LED Indication: 2 LED indicators SIM: Micro-SIM + eSIM |
Water and dust protection | IP41 |
Memory | 128 MB |
Bluetooth | Specification 4.0 + LE
Supported peripherals: temperature and humidity sensor, headphones, OBDII dongle, Inateck barcode scanner, support for universal BLE sensors |
Weight, g | 55 g |
Operating temperature | -40 °C to +85 °C |
Dimensions (W x D x H) | 65 x 56.6 x 20.6 mm |
