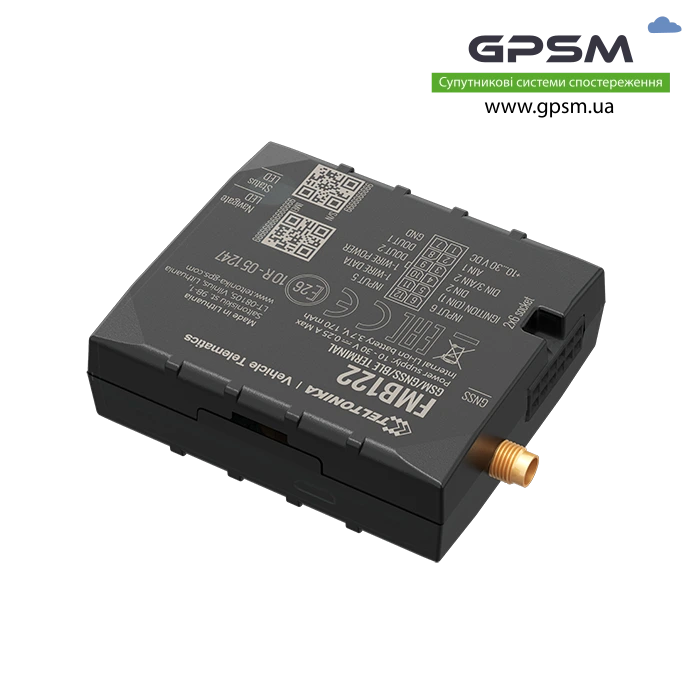

Teltonika FMB122 is a tracking device suitable for tracking the movement of cars, as well as for logistics tasks, delivery services, taxis, vehicle fleets and other organizations. The tracker is equipped with two antennas: internal GSM with high gain and external GNSS, and realizes wireless data transmission via Bluetooth. The model is compact, easy to assemble. It can work both from the on-board network and in autonomous mode from the battery. For remote monitoring and control, the device is equipped with digital inputs and outputs.
Features
External high-sensitivity GNSS antenna for improved positioning accuracy and flexibility in installation. The tracker can be placed from any part of the car.
Dual SIM-cards - standard and eSIM, which increase the functionality of the device. If the connection of the main card fails, FMB122 still remains in the network. Also, a device with two cards helps to save on roaming (one card is used in the home region of the subscriber, the other is used outside of it).
The device supports the 1-Wire protocol, which assists in driver identification, which prevents third parties from using the vehicle. You can use up to fifty iButton keys. In addition, the protocol makes it possible to connect a thermal sensor, which makes it easier to monitor the condition of the cargo.
The Bluetooth interface allows you to connect compatible sensors and a headset. Through the latter, you can organize communication with employees, which prevents unauthorized calls.
The ability to connect to a CAN adapter, which allows you to read information not only from cars and buses, but also from other types of transport equipment - agricultural, freight, construction, utilities. A large number of digital and analog inputs and outputs make the device suitable for use with refrigeration systems.
System functionality
- A smart algorithm for collecting information about the movement of the machine: the angle of rotation, distance, time data, difference in speeds are taken into account.
- Event notification via SMS.
- A special GPRS communication algorithm that saves traffic.
- Ability to select GSM providers and whitelist for connection outside of the home region. You can also create a list of blocked operators.
- GSM signal jamming fixation.
- Automatic geofencing.
- 50 geofences (round or rectangular).
- Possibility of connecting a barcode scanner.
- 4 sleep modes.
- If the GNSS signal is lost, time synchronization can be realized through the NITZ and NTP protocols.
Scenarios:
- safe driving;
- over speed;
- GSM signal blocking notification;
- calculation of fuel consumption by GNSS;
- control of a digital output by a call;
- notification - idle;
- immobilizer;
- iButton reading notification;
- disconnect alert;
- determination of vehicle towing;
- definition of an accident;
- autogeozone, geofence;
- travel alert.
Documentation
Drivers
Certificates
| Specification | |
| GPS module | Number of channels 33
Sensitivity -165 dBm |
| Humidity | 5% to 95% non-condensing |
| Accuracy | < 3 m |
| GSM module | Quad-band 850/900/1800/1900 MHz |
| Power consumption | At 12V <6 mA (Ultra Deep Sleep Mode)
At 12V <8 mA (Deep Sleep Mode) At 12V <11 mA (Sleep Online) At 12V <19 mA (GPS Sleep) At 12V <34 mA (nominal) |
| Coordinate time | Hot start <1 s
Warm start <25 s Cold start <35 s |
| Data channels | GPRS class 12 (up to 240 kbps), GPRS Mobile station class B, SMS (text / data) |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| Capacity built-in battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power supply voltage | 10 - 30 V DC with overvoltage protection |

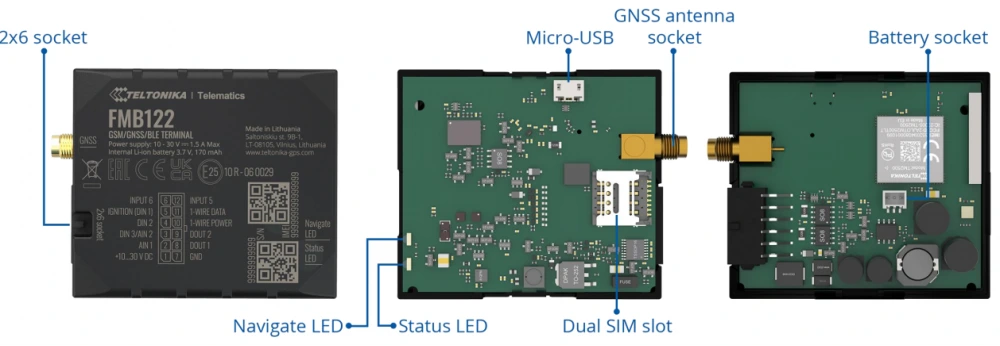

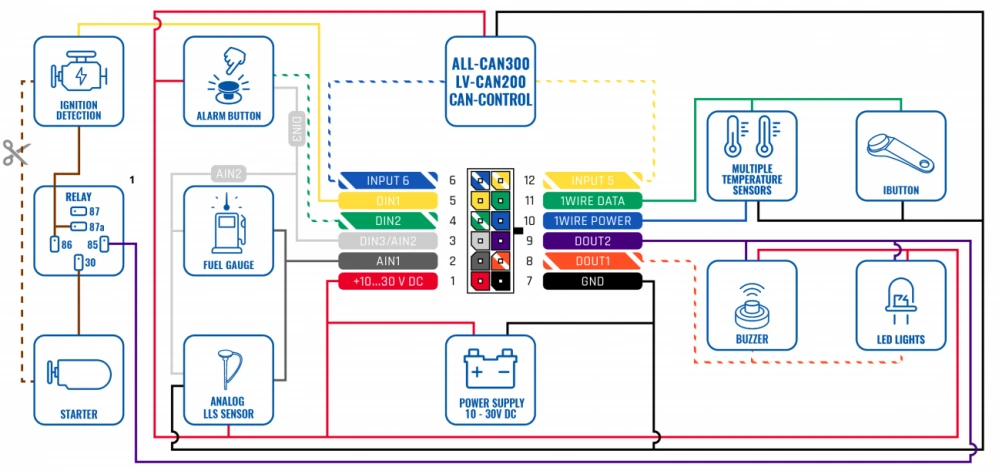

| Interfaces | Digital input: 3
Digital output: 2 Analog input: 2 CAN adapter inputs: 1 1-Wire: 1 GNSS antenna: External (MMCX) GSM antenna: Internal USB 2.0: Micro-USB LED indication: 2 LED status indicators SIM: Dual SIM |
| Water and dust protection | IP41 |
| Memory | 128MB |
| Bluetooth | 4.0 + LE
Supported peripherals: temperature and humidity sensor, headphones, OBDII dongle, Inateck barcode scanner, Universal BLE sensors support |
| Weight, g | 55 g |
| Operating temperature | -40 °C to +85 °C |
| Dimensions (W x D x H) | 65 x 56.6 x 20.6 mm |
