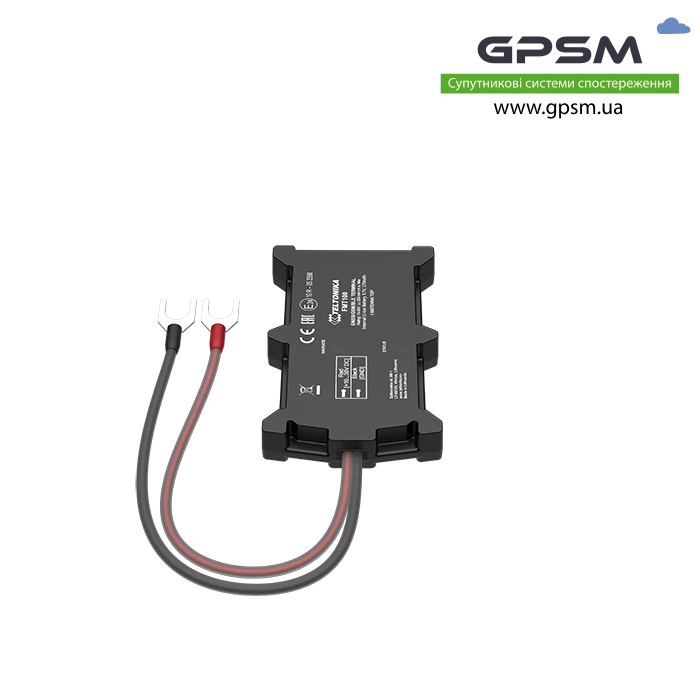

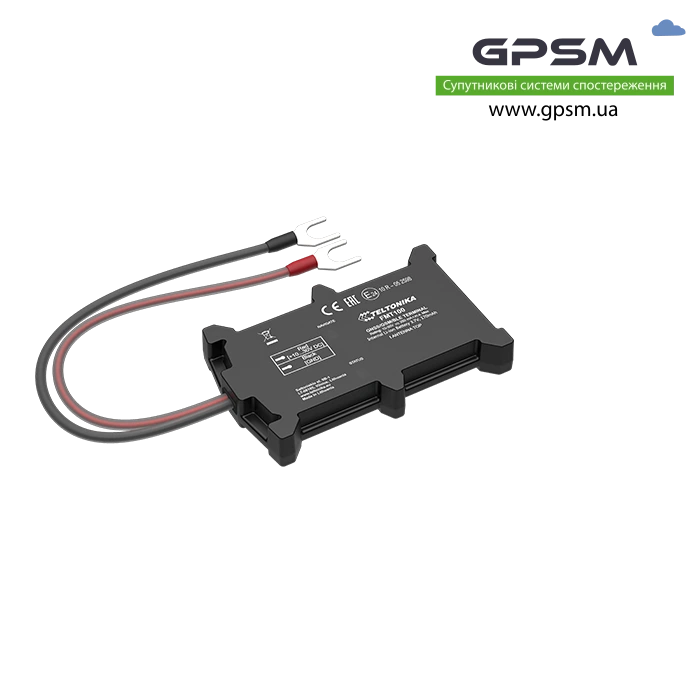

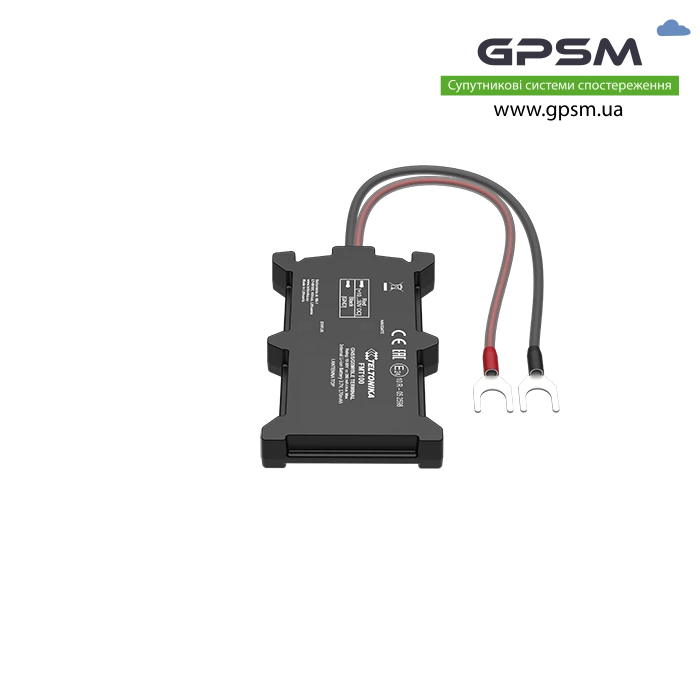

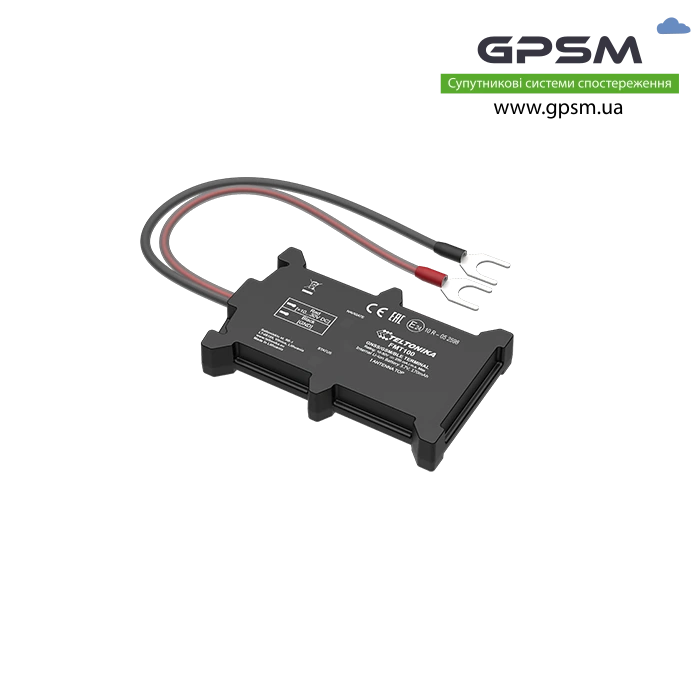

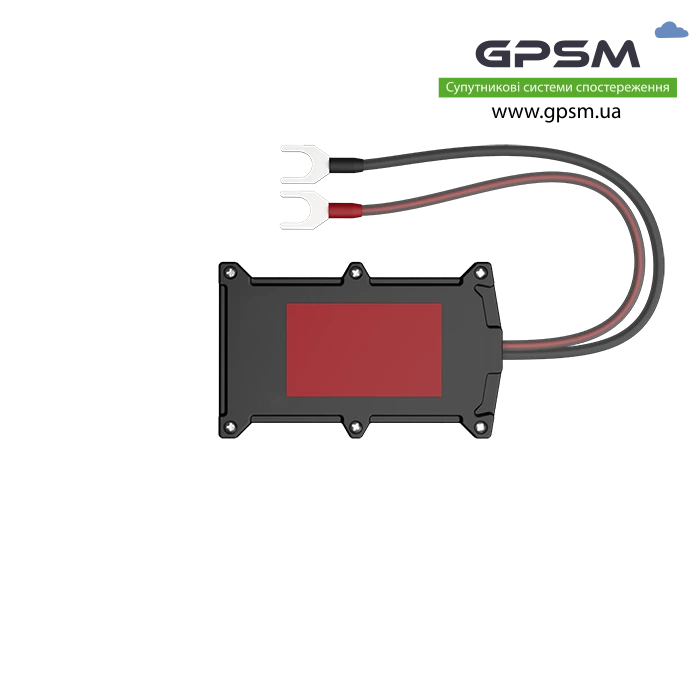

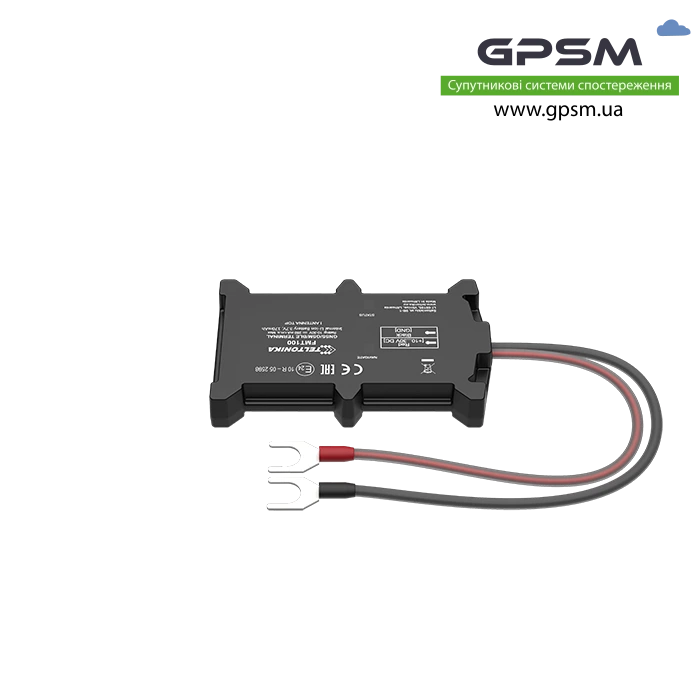

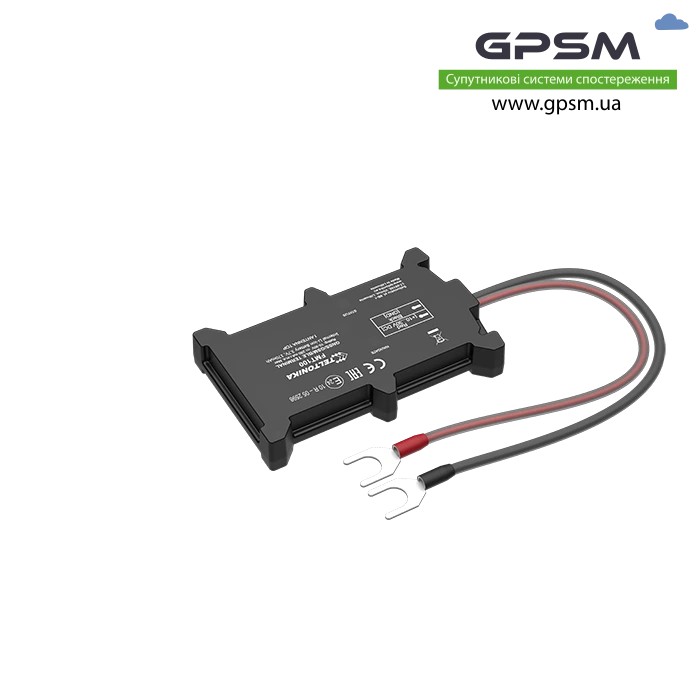

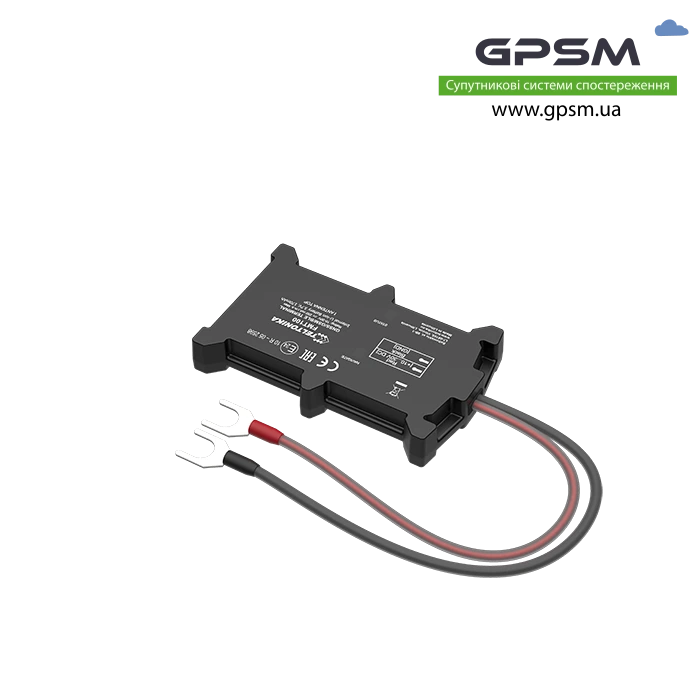

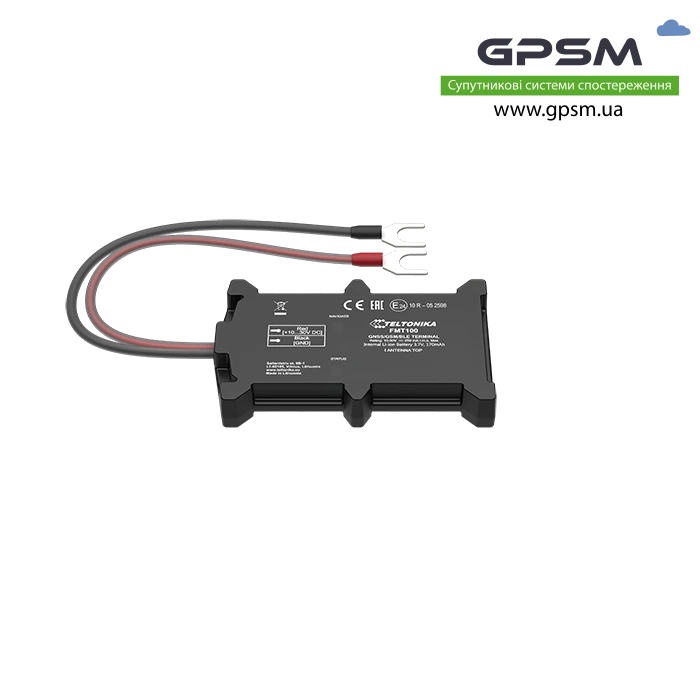

The FMT100 model from the Lithuanian manufacturer Teltonika is a compact waterproof GNSS / GSM tracker with the possibility of autonomous operation. It is designed to track the trajectory of a vehicle. The sensitive GNSS / GSM module ensures the accuracy of data on the movement of the vehicle up to 3 meters. The model is tailored for the tasks of insurance telematics, but it can also be used as a standard tracking device. The miniature tracker can be easily and quickly installed in the car. The IP65 case design ensures dust protection and reliable operation in all weather conditions.
FMT100 is equipped with a built-in power supply (lithium-ion battery, 170 mAh), which enables autonomous operation. It can also operate from an on-board DC network of 10-30 V and has an overvoltage protection mechanism.
The device has an internal sensor that combines the functions of a three-axis accelerometer and a gyroscope and allows detailed tracking of data on emergency incidents and vehicle movement at this time. Thanks to a data frequency of 200 Hz, you can analyze in detail the moment of an accident and find out its true cause.
The device supports Bluetooth (specification 4.0 + LE), which allows connecting climate sensors and other external devices. You can also make phone calls using a wireless headset (eliminating unauthorized incoming calls).

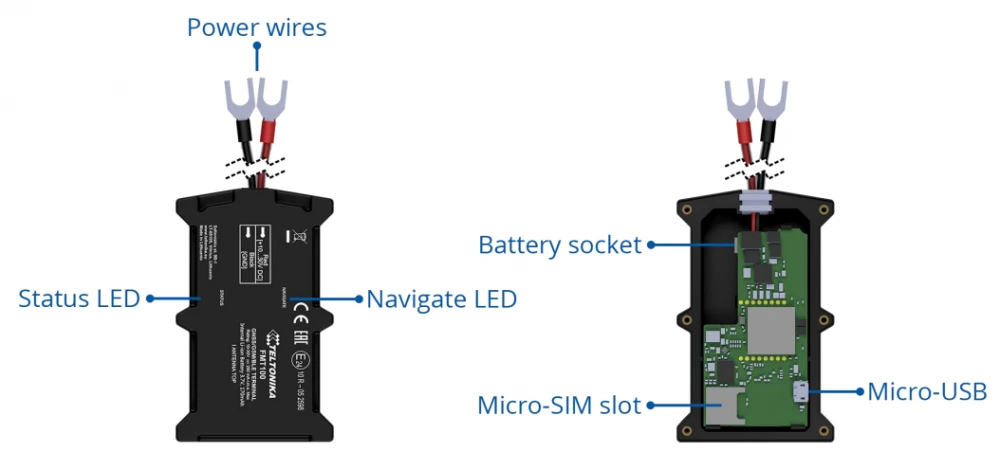

The model is equipped with a USB port and a SIM card slot. It has 128 MB of internal memory and 2 status lights. Also, the tracker is equipped with a socket that allows you to quickly connect the power cable to the battery. The gain of the large built-in GNSS antenna allows the device to be mounted directly on the vehicle battery under the hood.
System functionality
- Tracking cars in real time.
- High-precision collision detection.
- Intelligent collection of information based on timing, distance, tilt angles.
- Configuration via secure SMS commands.
- Recording of violations of speed limits, excessive idling, towing, distortions of the GSM signal, disconnections of the device from the on-board network.
- 4 sleep modes to help optimize energy consumption. A GPS sleep mode is provided, as well as an online sleep mode to maintain communication with the server. In ultra deep sleep mode, the device consumes less than 5 mA (when powered from a 12V network).
- Configuration and firmware update via FOTA.
- The ability to connect external devices: temperature sensor, BLE, adapter for OBD2 car diagnostics, headphones, barcode scanner.
- If there is no GNSS signal, there are 2 ways to synchronize the time - the NITZ and NTP protocols.
- Support for SMS notifications about events.
- Fuel consumption calculation option using GNSS.
Documentation
Drivers
Certificates
| Specification | |
| GPS module | Number of channels 33
Sensitivity -165 dBm |
| Humidity | 5% to 95% non-condensing |
| Accuracy | < 3 m |
| GSM module | Quad-band 850/900/1800/1900 MHz module |
| Power consumption | At 12V <1.47 mA (Ultra Deep Sleep Mode)
At 12V <3.21 mA (Sleep Online) At 12V <3.75 mA (Deep Sleep Mode) At 12V <5.48 mA (GPS Sleep) At 12V <24.41 mA (nominal) |
| Coordinate time | Hot start <1.5 s
Warm start <25 s Cold start <35 s |
| Data channels | GPRS class 12 (up to 240 kbps), GPRS Mobile station class B, SMS (text / data) |
| Technology | GSM/GPRS/GPS/BLUETOOTH |
| Capacity built-in battery | 170 мAh Li-ion battery 3.7 В (0,63 Wh) |
| Power supply voltage | 10 - 30 V with overvoltage protection |
| Interfaces | GNSS antenna: internal
GSM antenna: internal USB: Micro-USB Indication: 2 LED status indicators SIM: Micro-SIM |
| Water and dust protection | IP65 |
| Memory | 128MB internal memory |
| Bluetooth | Specification: 4.0 + LE
Supported peripherals: temperature and humidity sensor, OBDII dongle, headphones, Inateck barcode scanner, support for universal BLE sensors |
| Weight, g | 63 g |
| Operating temperature | -40 °C to +85 °C |
| Dimensions (W x D x H) | 92,5 х 57,6 х 14 mm |
