| Main | |
| Dimensions | 68x91x19 mm |
| G-sensor: | 3-axis digital accelerometer |
| GPS/GLONASS | Internal antenna |
| GSM | Internal antenna |
| GSM / GPRS class | 10 (up to 85.6 kbps), class B |
| GSM interference detection | + |
| Inputs | 4x digital (frequency, pulse counter, ON / OFF mode) 3x analog, 11 bits, 0-36V |
| Internal odometer | + |
| Launch | Cold <30 sec., Hot 1 sec. A-GPS support |
| Memory | 8 MB, up to 150,000 entries |
| Outputs | 2x digital, (-) |
| Power supply | 8 - 31B Protection against voltage surges up to 150V Consumption at 12V: active mode: <50mA, sleep mode: <8mA Logging power outages in the equipment event log 700 mAh / 210 mAh internal battery (optional) |
| Sensitivity | -164 dBm |
| Working temperature | From -40 to +85 Cᵒ |
| Интерфейс: | 2 simultaneously working CAN lines FMS CAN (J1939 protocol) Optional Sensors J1939 Protocol Volvo / Renault Can (J1708 protocol, without adapters) Basic CAN data for passenger cars 1-Wire (iButton), RS-232, RS-485, Wiegand 26 bit |
7 humans watching now
- Brand: BCE

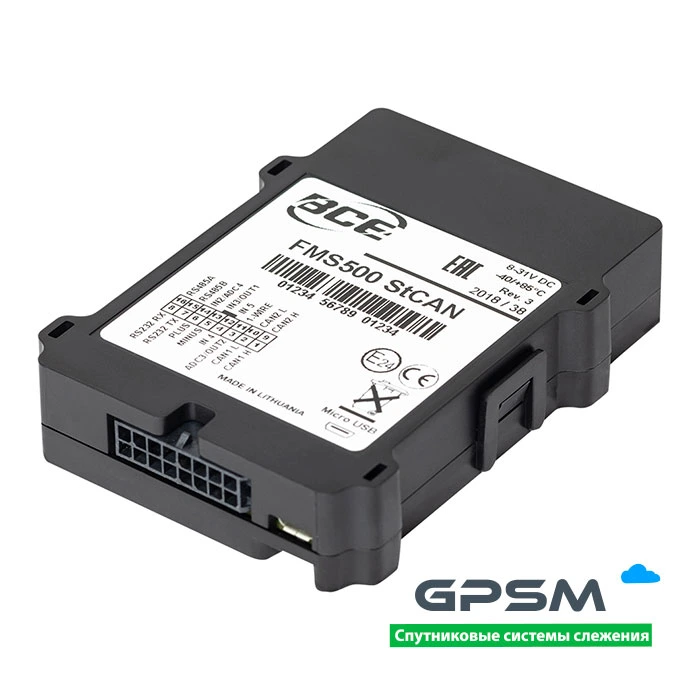

- Product Code: FMS500 StCAN
-
- Availability: Out Of Stock
- Guarantee: 12 months
Customer reviews 1 review
