GPS tracker with magnet U10-m

GPS tracker with U10-m magnet is a new smallest device for tracking any mobile objects. The device has a powerful super magnet with a peel force of 10 kg from iron objects. The size of the tracker does not exceed half a matchbox. The fastening takes place with the help of a magnet in any hidden place on the car body. GPS module with a sensitivity of -165 dB allows you to quickly determine the exact GPS coordinates, a cold start with AGPS function up to 27 seconds.

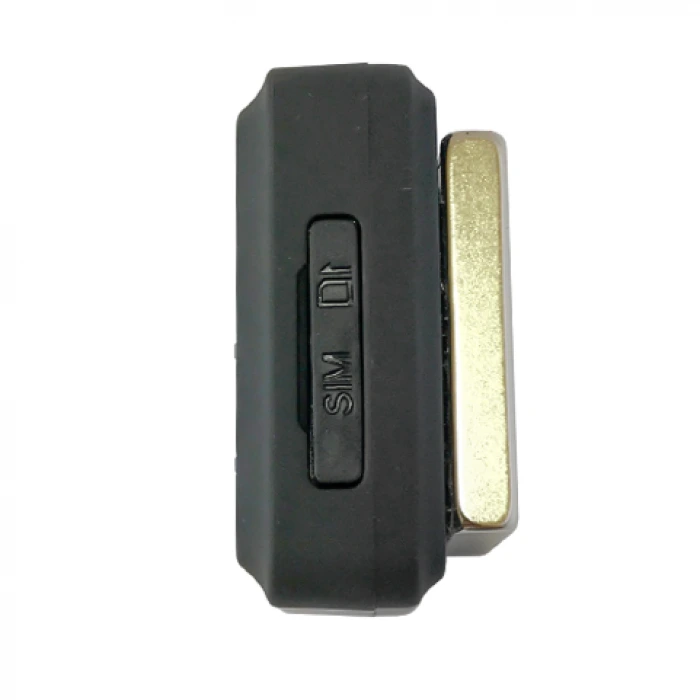

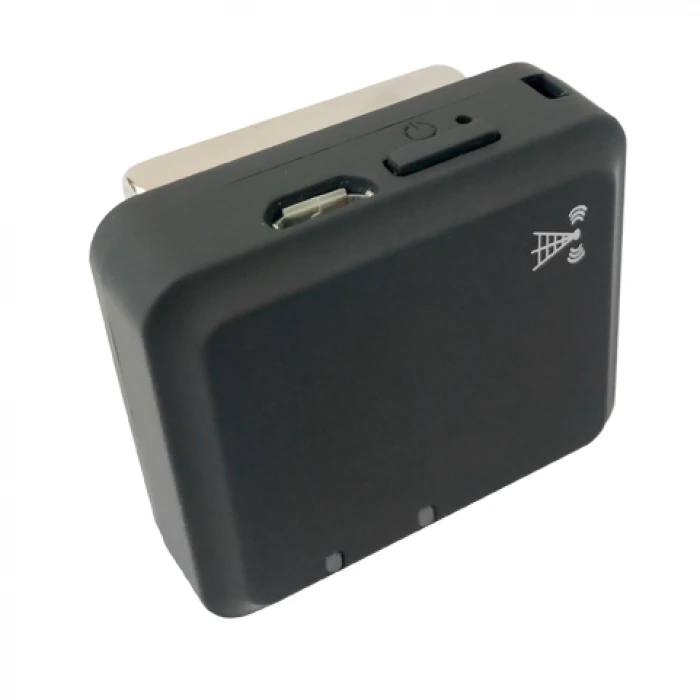

GPS tracker with magnet U10-m image 1   GPS tracker with magnet U10-m image 2   GPS tracker with magnet U10-m image 3   GPS tracker with magnet U10-m image 4   GPS tracker with magnet U10-m image 5   GPS tracker with magnet U10-m image 6   GPS tracker with magnet U10-m image 7

Scope of GPS tracker application:

  • To control vehicles (cars, trucks, agricultural machinery, mopeds, motorcycles, bicycles, quadrocopters);
  • Covert surveillance of children and the elderly;
  • Personnel monitoring (drivers, builders, couriers, merchandisers, promoters, security guards);
  • Monitoring of precious things (including bags, luggage, cargo);
  • Safety of expensive home appliances in case of theft.

Operating instructions:

To determine its location on the GPS map, the tracker uses data obtained from satellites. Further, using the mobile Internet, the device transmits the coordinates to a smartphone or PC. To ensure data transfer, a regular SIM card of a mobile operator is inserted into the tracker. To monitor objects in real time, a special application is installed on the smartphone (Android or IOS). Additionally, for observation, you can use the site via an Internet browser.
The range of the tracker is not limited, as it uses the coverage of the mobile operator. To connect the tracker, you can use the SIM card of any operator (Kyivstar, Vodafone or LifeCell). When going abroad, the GPS tracker will continue to work in roaming. In case of poor quality of the GSM network, the tracker will be able to record the historical route display to device memory. Later, the device will send data over the network, without losing the trajectory of movement.

Software

Software is provided free of charge for the device service life. The user does not have to pay a monthly fee for the service. To monitor objects using a PC, you must enter the site. For the smartphone, you need to install the AnyTracking application (in Russian), which can be downloaded from Google Play or the App Store. To enter the application, enter a login and the password received with the warranty card. In addition to it is the attached Russian user manual, with a detailed description of the settings. The user manual has a list of SMS commands necessary for controlling the tracker.

How autonomous operation works:

The device is completed with a built-in battery that allows you to be offline for a long time (up to 14 days). Low battery alarm of less than 20%.

Functionality:

  1.  Wiretap. Using a call from a mobile phone to the tracker, you can turn on the audio listening mode;
  2. Geo-fences. Using the settings in the application, the user can set the boundaries for moving the object on the map. When crossing the set zone, the corresponding signal will be sent to the smartphone;
  3. Setting route. The user can receive information about the time and place of the starting point of the route, time and coordinates of the final point of the route. The tracker can record the data on the duration of the route;
  4. Historical route display;
  5. Vibration sensor. A message comes on the smartphone indicating a certain level of vibration;
  6. The noise sensor. Alert the user at a certain level of noise.

Advantages of GPS tracker:

  • Lightness and compactness, thanks to which the tracker can be used imperceptibly for personnel and outsiders;
  • Convenient and easy setup;
  • Operational connection to the vehicle;
  • Low energy consumption.

Specification
GPS module Built-in antenna
Number of channels 32
Sensitivity -162 dBm
Accuracy up to 5 meters
GSM module Built-in antenna
GSM 850/900/1800/1900 MHz
GPRS Channel Class 12, TCP/IP
Technology GPS, GLONASS, GALILEO, BEIDOU
Capacity built-in battery 520 mAh
Power supply voltage 5 V
The algorithm for collecting coordinates By time interval
Based on distance
By interval interval
When you change the angle of movement
Water and dust protection IP64
Current consumption (12V) 20 мАч
Memory 2 MB
Weight, g 50 grams
Dimensions (W x D x H) 3.4 х 2.0 х 4.0 см
Main
Coordinate time “Hot” start <10 sec
Warm start <25 sec
“Cold” start <45 sec
