| Specification | |
| Consumption (l/h) | from 30 to 1500 |
| Consumption (l/min) | from 0.5 to 25 |
| Display/counting device | yes |
| Error | not more than 0,5% |
| Impulses for remote sensors | 0.01 / 1 l/pulse |
| Inlet diameter | 3/4 inch |
| Long-term consumption | 1000 l/h |
| Maximum consumption | 1500 l/h |
| Maximum temperature | 180 °C |
| Measuring chamber volume | 36 ml |
| Measuring principle | direct |
| Mesh size of the filter mesh | 0.4 mm |
| Minimum consumption | 30 l/h |
| Minimum readable volume | 0.1 l |
| Operating pressure | 25 bar |
| Outlet diameter | 3/4 inch |
| Repeatability | 0,1% |
| Sump filter cell size (maximum) | 0.1 mm |
| Type of flow meter | with pulse output, mechanical |
| Type of liquid | DT |
| Warranty | 12 months |
| Вага | 4.5 kg |

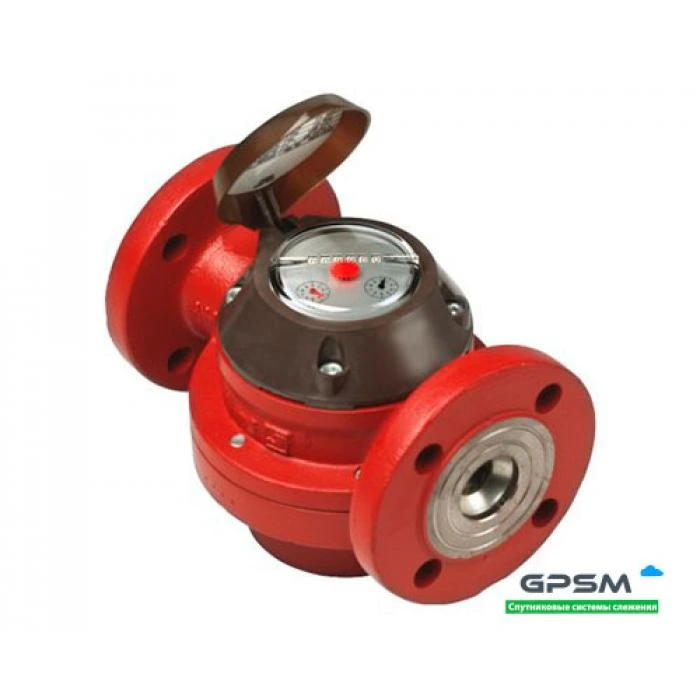

- Product Code: VZOA 20 FL 180/25
-
- Availability: In Stock
- Guarantee: 12 months
