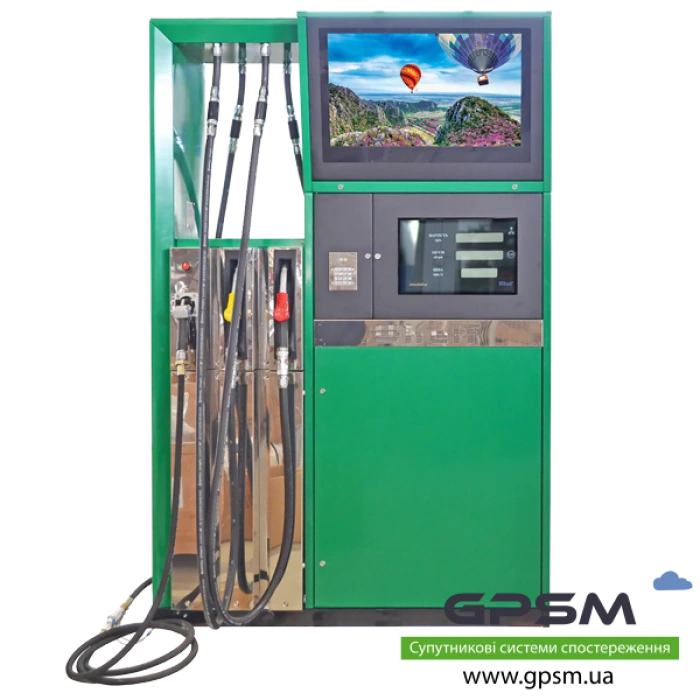

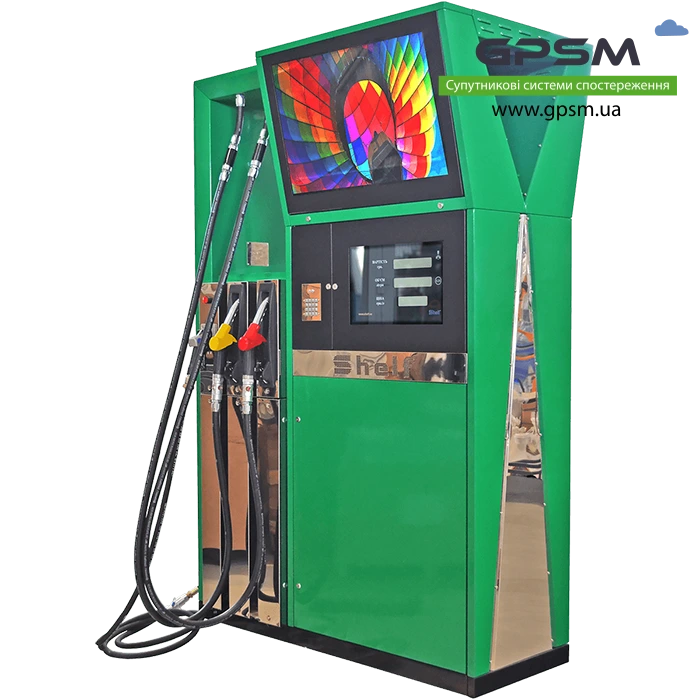

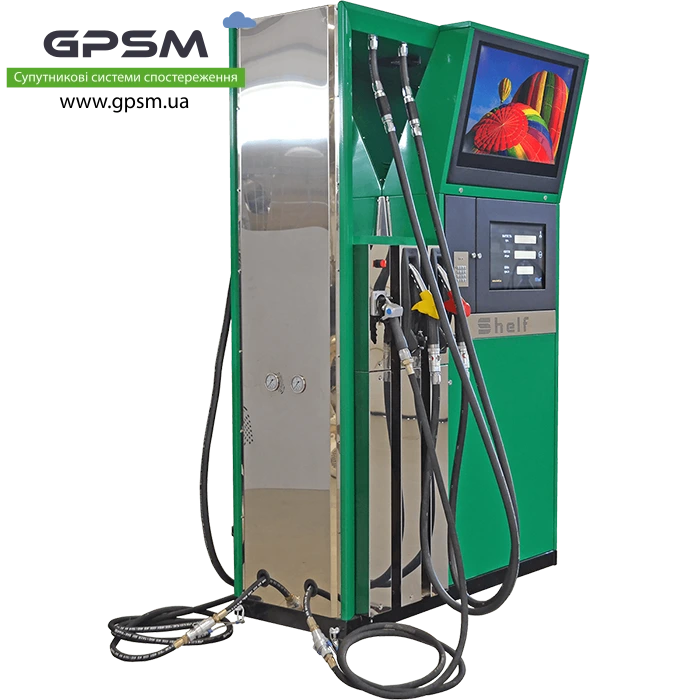

Fuel dispensers from the Shelf manufacturer have new unique capabilities. This model range received the ability to dispense both liquid fuel and gas using a common controller. This allows you to save on the purchase of additional dispensers, and equip a sufficient number of universal parking spaces where absolutely all road users can refuel.
Distinctive features
The main difference between this model range is the presence of two types of pistols - for liquid fuel and for gas. This modification has the ability to dispense a couple of types of gasoline or diesel fuel, as well as one type of gas (propane mixture).
The body is made in a portal version, which increases the attractiveness and provides a pleasant appearance. This approach also has one more positive property - the ability to quickly perform repairs, since all elements are autonomous and can be replaced in blocks.
Thanks to this, in the event of a breakdown, downtime is reduced, since for repair it will be enough to open the case and replace the failed module with the help of available tools. After that, the faulty unit is sent for recovery separately, and the column continues to perform its main functions almost continuously.
Wiring diagram
Advantages of Shelf 300-2S LPG columns
- Robust vandal-proof housing.
- High reliability of equipment due to the use of quality materials and components.
- Possibility of autonomous operation with control from the built-in keyboard.
- Simple command system interface.
- Proprietary controller that fits well with the rest of the modules.
- An accurate system for calculating the dispensed fuel, which cannot be fooled.
Due to these characteristics, Shelf 300-2S LPG dispensers are used both at gas stations and at enterprises with a large vehicle fleet.
Electrical connection diagram
- Monoblock pump
- Bellows flexible connector
- Electric motor 380V
- Volume meter
- The crane distributing ZVA type
- Hose heat and oil resistant Continental
- Liquid crystal display with backlight
- Dallas electronic access key
- Breaking coupling
- Monitor 32 ″
- LED display
- OPW crane type
- Electric motor 220V
- Satellite
- High-speed channel with a capacity of 90 l/min.
Documentation
Certificates
Fuel dispenser specifications | |
Nominal productivity, l/min | 50/90 (gasoline, dp), 50 ± 5 (gas) |
Error | ±0,5%, ±1,0%(gas) |
Minimum dose of fuel delivery, l | 2/10((gasoline, dp), 5(gas) |
Number of taps | 4+2 |
Electronic calibration | + |
Number of pumps | 2+propane |
Type of fuel | gasoline, dp, biodiesel (100%), propane |
Working temperature | -25/+55°С |
Powering | 230/400V +/- 10%, 50 Hz+/- 2Hz |
User identification | ЕК Dallas |
Hose length, m | 4 |
Display | backlit LCD / LED |
Total fuel counter | Electronic 12-digit |
Single dose counter capacity | 9999,99 l |
Dimensions H*W*D, mm, no more | 2350/900/1481 |
Dimensions with packaging H*W*D, mm | 2350/1000/1481 |
Weight, kg, not more | 559 |
