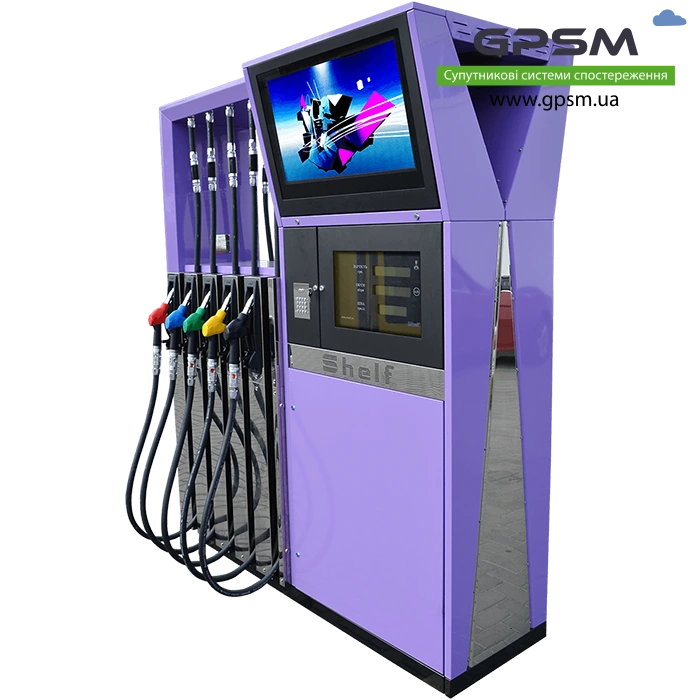

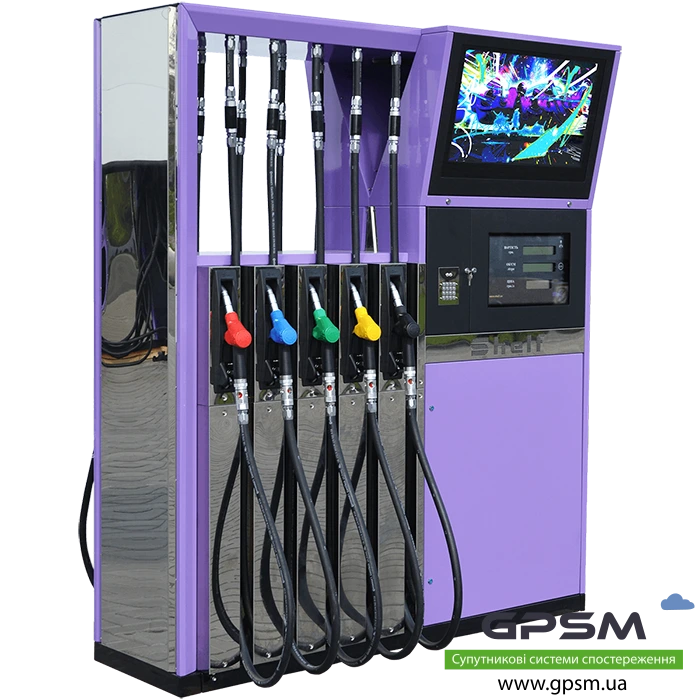

Shelf 300-5S is a double-sided dispenser that allows parallel dispensing of up to 5 types of fuel. It is equipped with 5 hoses with taps on each side. Thanks to this configuration, the device provides efficient unloading of the filling station. In addition to it, you can purchase a satellite crane for refueling vehicles with two tanks.
The difference between this model and other columns in the line is the absence of built-in pumps. For work, you need to use submersible devices or purchase a remote model from the manufacturer.
Interesting features of the model
- The ability to work with the main common types of fuel - gasoline (including E15 - with the addition of ethanol), diesel, biodiesel. As with other such columns, biodiesel can only be used in its pure form (not mixed with conventional diesel).
- Display of settings and calculated data on a backlit liquid crystal display. Letters and numbers have a height of 2.5 cm. For price values, the user can adjust the number of decimal places (from 0 to 4).
- The ability to work both through the control system and independently through the built-in keyboard, as well as the option when the data entered from the keyboard is transmitted to the VUU. Software calibration is provided. The user can select the speed of the communication channel with the VUU.
- Collection of statistics on dispenses for each shift - general and for each type of fuel (including separately for non-cash and cash payments).
- In the event of a sudden power outage, characters on the screen are displayed for 15 minutes. Important data is stored indefinitely.
- Electronic keys protect the control unit from unlawful intrusions by the filling station workers. The experience of using Dallas keys proves their high efficiency.
Layout of pumps and valves
Since the device is the most functionally equipped of the speakers in this line, it also has the highest price. Additional accessories can be purchased for the device - an LED screen, an external pumping unit, a vapor removal system, a 220 V electric motor (by default, a 380 V motor is installed in the column) and an OPW type crane (ZWA models are provided by default). Also, at the request of the buyer, you can paint the structure in the selected color with the application of brand symbols.
Wiring diagram
Documentation
Certificates
- Conclusion of the state sanitary and epidemiological examination
- Permission to use the fuel dispenser
- Explosion protection certificate for electrical equipment
- Certificate of conformity of measuring instruments to the approved type
- Certificate of conformity
- Type examination certificate
- Fuel dispenser type inspection certificate
Fuel dispenser specifications | |
Nominal productivity, l/min | 50/90 |
Error | ±0,5% |
Minimum dose of fuel delivery, l | 2/10 |
Number of taps | 10 |
Electronic calibration | + |
Number of pumps | 5 |
Type of fuel | gasoline, dp, biodiesel (100%) or E15 |
Working temperature | -25/+55°С |
Powering | 230/400V +/- 10%, 50 Hz+/- 2Hz |
User identification | ЕК Dallas |
Hose length, m | 4 |
Display | backlit LCD / LED |
Total fuel counter | Electronic 12-digit |
Single dose counter capacity | 9999,99 l |
Dimensions H*W*D, mm, no more | 2350/1920/900 |
Dimensions with packaging H*W*D, mm | 2350/1920/1000 |
Weight, kg, not more | 745, 598(without pumps) |
