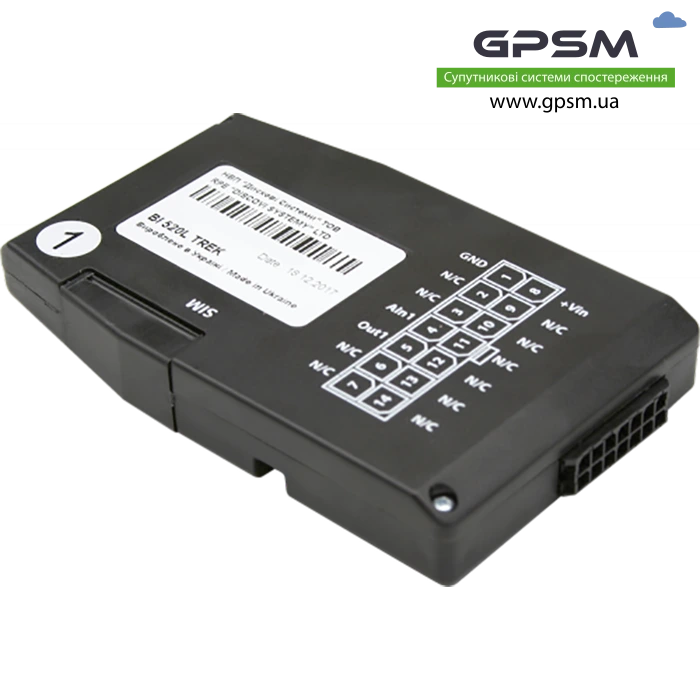

BI 520L TREK is a compact universal tracker for satellite tracking with built-in antennas. Allows you to monitor the position of any car, motor vehicles in real time. It is possible to connect the function of remote blocking of the engine or other executive unit to the system.
With the help of this tracker, you can monitor vehicle routes, speed limits, track parking lots and stops, mileage. The device eliminates the risk of using the vehicle by third parties. You can turn off the engine remotely, preventing unauthorized entry. The device is connected to the car's on-board power supply circuit - from 6 to 36V.
Benefits
BI 520L TREK is distinguished by its advantages:
- The ability to connect settings, firmware via cloud storage;
- Equipped with a protective mechanism that rivals premium equipment;
- Antijamming - signal jamming system determinant;
- MicroSIM slot;
- Analog input, digital output;
- The device is capable of providing detailed tracking and remote control of the ignition system;
- Battery 130 mAh;
- If the connection with the source is lost, it saves up to 50 thousand records and automatically transmits the information to the satellite server as soon as the connection is restored;
- Functions FOTA - the tracker supports the protocol for remote adjustment of settings and changing the system firmware;
- Equipped with an open data sending protocol that is compatible with all popular software;
- The small size of the equipment and built-in antennas make it possible to mount the tracker in any car;
- The backup memory (up to 50,000 records) is enough for 2 months of battery life;
- Support for all satellite navigation systems is provided;
- Not afraid of temperature changes - from -30 to +80 degrees Celsius;
- Tracking information can be verified using any modern portable device: smartphone or tablet;
- The ability to configure blocking of the engine or other important parts of the car to prevent unauthorized access;
- It can be combined with special equipment in the power circuit from 6 to 36V.
Installing a SIM card
Applications
The BI 520L TREK can be used for:
- protection of a personal vehicle - you will always be aware of where your car is, at what speed and on what route it is moving;
- to track working equipment - you, as a manager, will be able to exclude "third-party" flights and inappropriate operation of the company's transport;
- for logistics purposes - you will be able to monitor movements within the technical park in real time, planning logistics processes (rental cars, flights, delivery services, taxi companies, etc.).
The cost of BI 520L TREK fully justifies all its characteristics. The device outperforms the competition and is comparable to more expensive equipment.
Connector location and pin numbering
Documentation
| Main | |
| Analog input voltage range | From 0V to 27V |
| Analog inputs | 1 |
| Battery Capacity | 130 mAh |
| Body material | ABS plastic UL94 V0 |
| Channels of connection | GPRS, SMS |
| Data transfer standard | GSM 900/1800 |
| Dimensions | 96x60x14 mm |
| Enclosure class | IP 54 |
| G-sensor: | + |
| GPRS class | 10 |
| GPS and GSM antennas | Internal |
| Maximum current of discrete outputs | 0.5 A |
| Number of discrete outputs | 1 |
| Power type | Permanent |
| Power voltage | From 6V to 36V |
| SIM cards | 1 |
| Type of discrete outputs | Open collector |
| Type of navigation system | GPS or Glonass / GPS, LBS |
| Typical current consumption (12V) | 60 mA |
| Voltage range of discrete outputs | From 0V to 40V |
| Volume of non-volatile memory | 2 MB (or 50,000 entries) |
| Weight | 65 gr |
| Working humidity | (80±15)% |
| Working temperature | From -30 ° С to + 80 ° С |
