Short description of BLUE COIN MOV
Teltonika has always focused on providing the very best solutions. BLUE COIN MOV is a tilt angle (inclinometer), position and acceleration sensor that has a built-in battery with a battery life of up to 5 years.
This sensor allows you to cover a wide range of business tasks. Thanks to new technologies, the sensor is able to easily detect movements, the position of objects in space, and record all movements.
The device has a special low-power Bluetooth (BLE) module (2.4 GHz - Bluetooth Low Energy 4.0 / 4.2). The module has a small size, allows you to update information with a predetermined time interval. Now your cargo, equipment, shipping containers will be monitored around the clock, the slightest angular movement or linear displacement will be detected using the smart sensor of the Beacons system.

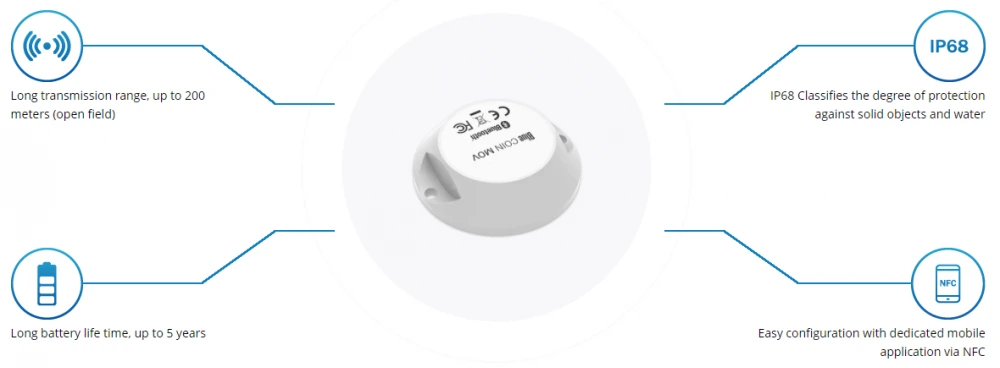

Interesting opportunities
The sensor is powerful enough to work even in places where radio transmission is difficult. The range of the sensor is up to 200 meters in open areas. The device can be configured manually by downloading a dedicated application to your smartphone. The sensor uses new technology Bluetooth 4.0 to distribute information from a distance of hundreds of meters and can function without problems from one battery up to several years. The manufacturer has made the sensor waterproof, which expands the possibilities of using the sensor in high humidity conditions. Due to its compactness, the device does not take up much free space. The device weighs 11 g.
Among the interesting features of the sensor are the following:
- Long range of information transmission, up to 200 meters in open space.
- Battery life up to 5 years from one battery.
- One GPS tracker can be connected to 100 BLE sensors simultaneously.
- Thanks to reliable and high quality materials, the model has a long service life.
- The device can be easily configured using a dedicated mobile app via a secure NFC signal.
- The sensor can be used to implement local object tracking where GPS is not available.
Setting up with a convenient mobile app
A free mobile application is available for configuration: https://play.google.com/store/apps/details?id=com.ela.mobileapp.elamobileapp&hl=en_US
In addition to the mobile application, configuration is available using a PC program:
Unique technical characteristics
- The transmission frequency of the 2.4 GHz channel is Bluetooth Low Energy 4.0 / 4.2.
- Transmission range in open space up to 200 meters.
- The weight is 11 grams.
- Possibility of setting the discreteness of signal transmission with an interval from 0.1 to 10 seconds.
- The system response time is no more than 0.5 sec.
For buyers who want to purchase a product on a long-term basis, personal technical support is available. Register on the site and get technical support in a convenient format (chat on the site, instant messengers, phone). In addition, consultations with reputable experts and exchange of views will be provided for you completely free of charge.
Blue Coin Mov will become your reliable guide to the unknown world of digital tracking technologies. Trust the smart sensor and have fun with your work. Save time, money and effort on security and the cost of monitoring your property.
Downloads:
Comparison of the dimensions of the old and new sensor modifications:
Old version | New version |
|
|
Old PUCK model | New PUCK model |
|
|
Specification | |
Dimensions | ø 36 mm base - Thickness 10 mm - 2 mounting ø 3 mm holes, spaced of 32 mm |
Weight, g | 11 g |
Work autonomy | up to 5 years |
Main | |
Bluetooth | 2,4 ГГц - Bluetooth Low Energy 4.0 / 4.2 |
Waterproof level | IP68 (Waterproof)
|
Temperature: | -30°C to +70°C
|
Tags: configurable autonomous, personal, convenient, handheld, compact, motion sensor, tracker, BLE, inclinometer, tilt sensor, acceleration sensor
