Teltonika FMB140

FMB140 is a new model of GSM / Bluetooth tracker designed for tracking cars and trucks, as well as special equipment.

The tracker is used in such areas as logistics, agriculture, construction, utilities. A distinctive feature of the device is the presence of a built-in CAN module that reads the main indicators of the vehicle. The manufacturer of the GPS tracker, together with the device, provides access to a database with connection diagrams, as well as a list of parameters that can be read from the car's on-board computer.

To read the parameters of the on-board computer in the Teltonika FMB140 model, the year of manufacture of the car, the brand and model are indicated. Due to the support of various CAN-bus versions, the device can read data from a wide range of vehicles - buses, trucks, industrial equipment. The device has flexible configuration and remote control capabilities.

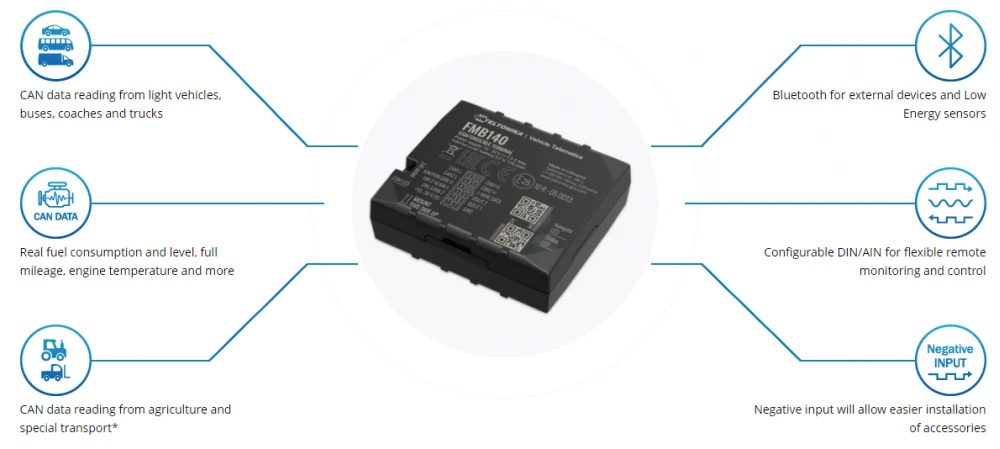

Interesting model features

Teltonika brand devices can be configured both using a mobile application and using a PC.

GPS tracker FMB140 has the function of reading the following data:

1. Fuel level.
2. Cumulative fuel consumption.
3. Engine temperature.
4. Mileage (dashboard odometer).
5. Gas pedal position.
6. Engine speed.

The ALL-CAN300 module is an extended version of the CAN reader that allows you to get those parameters that are not available in the standard list. Reads the engine life, the condition of the airbags, the AdBlue (exhaust gas cleaning fluid) level and other parameters that are in the on-board computer.

Devices with the ALL-CAN300 option are able to read additional information from special equipment, electric vehicles, combines, cranes, trucks and other non-standard types of equipment.

FMB140 tracker supports Bluetooth 4.0 LE protocol. Thanks to this feature, wireless BLE sensors can be connected to the device.

If it is necessary to read additional parameters, it is possible to remotely update the tracker version from LV-CAN200 firmware to ALL-CAN300 version. This will allow to read data from more equipment and expand the list of parameters.

Availability of the AUTOSCAN function. All FMB140 models, connecting to the CAN bus, scan it and receive the car software number for a specific car model. This feature makes it easy to install and configure the tracker.

Contacts on FMB140 device

Specifications

Scenarios detected by FMB140 tracker:

1. Overspeed detection.
2. Search for interference in the engine.
3. Idling detection.
4. Towing detection.
5. Definition of an accident.
6. Geofence and autogeofence.
7. Travel alert.

Tracker specifications:

1. Built-in GPS / GLONASS antenna.
2. 2G GSM module.
3. The error is less than 3 m.
4. Operating temperature - from -40 ° C to +85 ° C
5. Data transfer - up to 240 kbps.
6. Overvoltage protection.
7. The GSM frequency range in which the device operates is 850/900/1800/1900 MHz.
8. Availability of SIM cards - 1 + eSIM.
9. Supply voltage - from 10 to 30 V.
10. Rechargeable Li-Ion 170 mA battery.
11. Possibility of connecting to a PC via the USB port.
12. The device memory is 128 MB.
13. Possibility of connecting an alarm button.
14. Device control via SMS, Bluetooth mobile application, FOTA (remote firmware update).
15. The presence of two-way voice communication using a bluethoth headset.
16. Protection degree - IP41.

The device supports peripheral devices such as Headphones, OBDII dongle, Inateck barcode scanner, humidity and temperature sensors.

Documentation

Manual for FMB140

1. FMB140 Quick Start Guide.
2. Characteristics.

Drivers and software

1. COM Port Driver
2. FMB140 configurator
