Teltonika FMB640 is a professional tracker that supports GNSS and GSM technologies. The model is suitable for the most modern applications, it can perform several tasks at the same time.
Using the tracker is an opportunity to improve the control of the fleet of cars and trucks, special equipment, to prevent its unauthorized use, accidents or theft. The device is useful for international road transport, in agriculture to control the processing of areas, as well as in the construction industry. Teltonika FMB640 simplifies the management of the fleet of utilities and emergency services, security agencies.
You can connect various devices to the tracker, operate in a wide temperature range. The presence of the battery ensures long-term operation of the device without connecting to an external power source. Teltonika FMB640 reads FMS CAN and CAN data on fuel consumption, information from the tachograph, supports two SIM cards.
Interesting model features

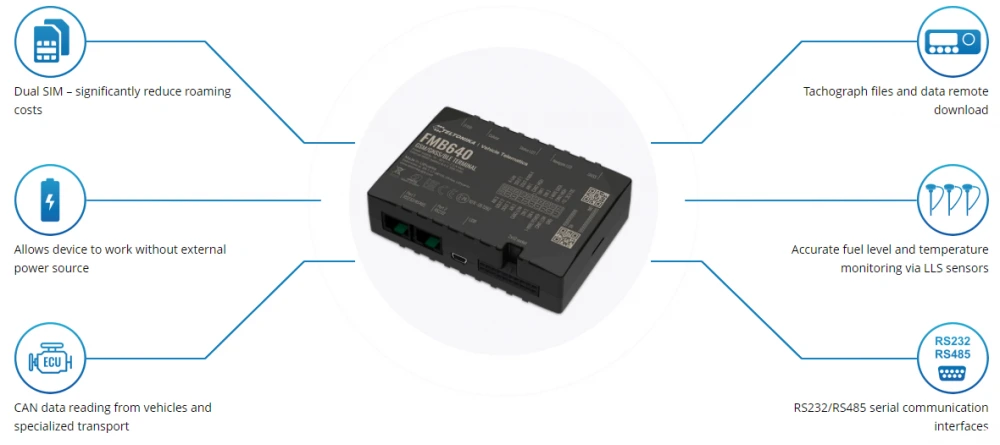

The FMB640 features:
- Dual SIM support. Thanks to this, you can save on roaming, which is important in the field of international logistics. One of the SIM cards can be used for communication within the state, and the second for roaming. If one card has problems with the network, then at the expense of the second, the crew will be able to get in touch.
- The presence of a battery. This makes the device more autonomous. Teltonika FMB640 can work for a long time without connecting to an external power source. The device will transmit data to the dispatcher even if the vehicle battery is disconnected.
- Reading information from CAN. This model collects information from vehicles of various modifications, which makes the tracker universal. It can be applied to various fields.
- Monitoring a large number of indicators. Due to FLS, Teltonika FMB640 monitors the fuel level, which prevents unauthorized use of vehicles and theft of materials. The tracker also helps to monitor temperature data, which is important when transporting temperature cargo that requires cooling.
- Remote download. Teltonika FMB640 is able to remotely receive information from the tachograph, which makes it easier to control the driving and rest modes of the crew. Data can be downloaded in various formats and received in real time without the need for an adapter.
- Connection features. The tracker is adapted for serial connection to RS232 RS 485 ports.This allows you to connect several sensors simultaneously.
Specifications
The tracker monitors external power supply, digital input and accelerometer to detect ignition. The device allows you to determine the parameters for different driving modes and transmit signals when you deviate. The tracker supports a large list of scenarios:
- green driving;
- vehicle speed control;
- loss of GSM signal;
- monitoring a large amount of idle;
- tow detection;
- emergency stop detection;
- geofencing in manual and automatic mode;
- recording trips;
- gasoline or diesel fuel consumption meter;
- odometer ;
- offline tracking;
- voice calls, etc.
Teltonika FMB640 transmits data about the beginning and end of the trip, helps to quickly eliminate the accident and prevent theft of the car. The tracker clearly identifies towing and idling. In sleep mode, the power saving mode is activated, the device consumes less energy, which increases the battery autonomy. Teltonika FMB640 is the optimal solution for vehicle fleet control.
Documentation
Пособие
Certificates
Specification | |
GPS module | Number of channels 33/99
Sensitivity -165 dBm |
Humidity | 5% to 95% non-condensing |
Accuracy | < 3 m |
GSM module | Quad-band 850 / 900 / 1800 / 1900 MHz
|
Coordinate time | “Hot” start <1 sec
Warm start <25 sec “Cold” start <35 sec |
Data channels | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS mobile station class B, SMS (text / data) |
Technology | GSM,GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPSS, SBAS |
Capacity built-in battery | 550mAh Ni-Mh, 8.4V battery |
Power supply voltage | 10 - 30 V DC with overvoltage protection |
Interfaces | Digital input 4
Digital output 4 Analog inputs 4 1-Wire 1 RS232 2 RS485 1 CAN J1939 2 J1708 1 K-line 1 2.0 Mini-USB |
Water and dust protection | IP41 |
Memory | 2MB internal flash memory and support for external Micro SD card up to 32GB |
Bluetooth | 4.0 |
Weight, g | 197 g |
Operating temperature | 40 °C to +85 °C |
Dimensions (W x D x H) | 104,1 х 76,8 х 31,5 mm |
