Teltonika FMB920 is a miniature tracker with a socket for connecting to a car cigarette lighter. It supports Bluetooth 4.0+LE and has a battery for autonomous operation. The model is suitable for tracking passenger cars in insurance telematics, taxi and delivery services, vehicle fleets and other companies. Connecting to the cigarette lighter provides quick connection, without cutting into the wiring, which can save the warranty on the vehicle. The device is miniaturized and will not take up much space on the console.

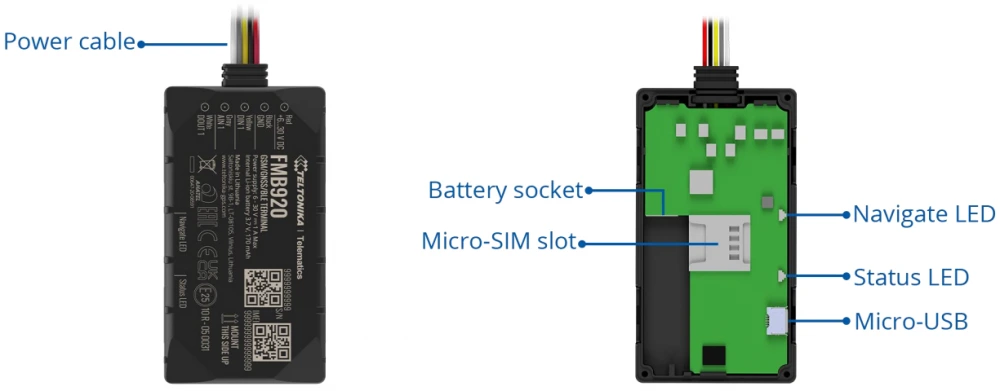

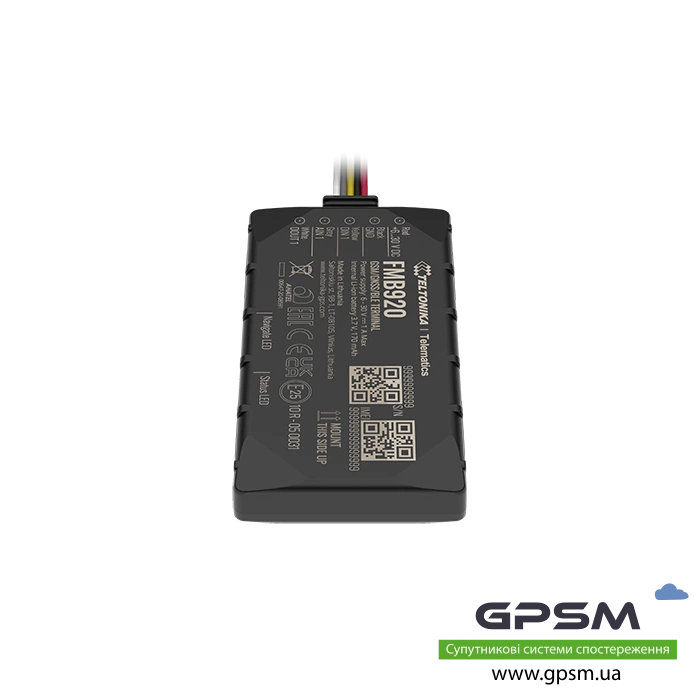

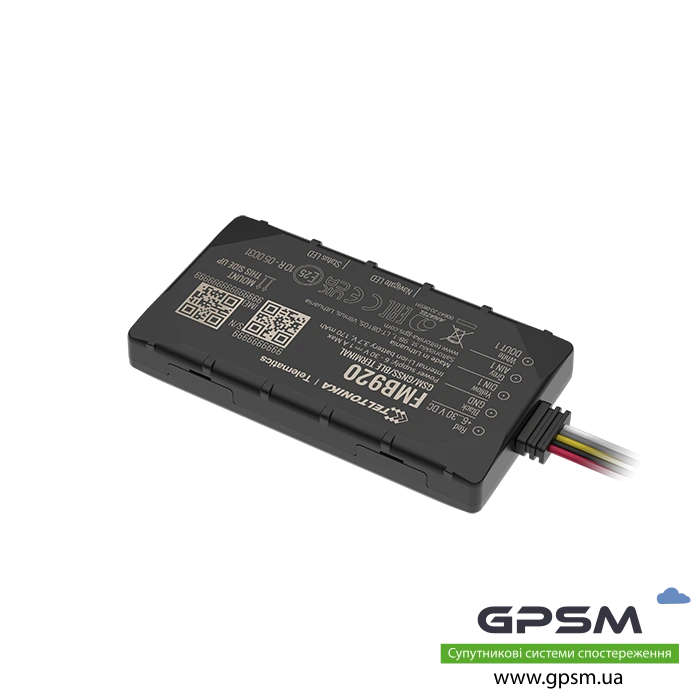

outside and inside view
An option for detecting an emergency incident using data from an accelerometer (tilt sensor). An accident notification comes instantly, right after the incident.
OBDII Dongle allows reading CAN bus information from vehicle control unit using Bluetooth.
Using Bluetooth, you can connect sensors and a headset. Using the latter to communicate with employees prevents inappropriate calls. Universal BLE sensors are also supported to prevent third parties from using the car.
The model has a rechargeable lithium-ion battery, thanks to which it can work not only from the on-board network, but also in autonomous mode. Battery capacity - 170 mAh. FMB920 can be operated from 6-30 V mains and has an overvoltage protection mechanism.
Functionality
- Built-in accelerometer sensor.
- Tracking movement in real time.
- Intelligent connection algorithm that saves GPRS traffic.
- Towing detection to prevent theft.
- Notifications about speeding, termination of access to the GSM signal.
- Fixing the beginning and end of the trip.
- Automatic geofencing, 50 geofences.
- Calculation of fuel consumption by GPS.
- Ignition detection via ODBII dongle, accelerometer sensor signals.
- Recording of events with warning by means of SMS-messages or GPRS-communication.
- Intelligent collection of information based on distance, time, ignition and other events.
- It is possible to update the configuration via the mobile application.
- Configuration via SMS.
- 4 sleep modes. One of them (super deep sleep) is characterized by maximum energy saving - the device consumes less than 2 mA in it. Online sleep mode allows you to keep the connection to the server.
Documentation
Drivers
Certificates
- EAC
- REACH
- RoHS
- Declaration of assignment IMEI
- CE / RED, UKCA
- E-Mark
- Declaration of operating temperature of the device
- IP Rating
- Anatel Certificate
| Specification | |
| GPS module | Number of channels 33
Sensitivity -165 dBm |
| Humidity | 5% to 95% non-condensing |
| Accuracy | < 3 m |
| GSM module | Quad-band 850/900/1800/1900 MHz |
| Power consumption | At 12V <2 mA (Ultra deep sleep mode)
At 12V <4 mA (deep sleep mode) At 12V <5 mA (Sleep online) At 12V <6 mA (GPS Sleep) At 12V <25 mA (nominal) |
| Coordinate time | Hot start <1.5 s
Warm start <25 s Cold start <35 s |
| Data channels | GPRS class 12 (up to 240 kbps), GPRS Mobile station class B, SMS (text / data) |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| Capacity built-in battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power supply voltage | 6-30V DC with overvoltage protection |
| Interfaces | Digital input: 1
Digital output: 1 Analog input: 1 GNSS antenna: Internal GSM antenna: Internal USB: 2.0 Micro-USB LED indication: 2 LED status indicators SIM: Micro-SIM |
| Water and dust protection | IP67 |
| Memory | 128MB |
| Bluetooth | Specification 4.0 + LE
Supported Peripherals: Temperature & Humidity Sensor, Headphone, OBDII Dongle, Inateck Barcode Scanner, Universal BLE Sensor Support |
| Weight, g | 54 g |
| Operating temperature | from -40 ° C to +85 ° C |
| Dimensions (W x D x H) | 79 x 43 x 12 mm |
