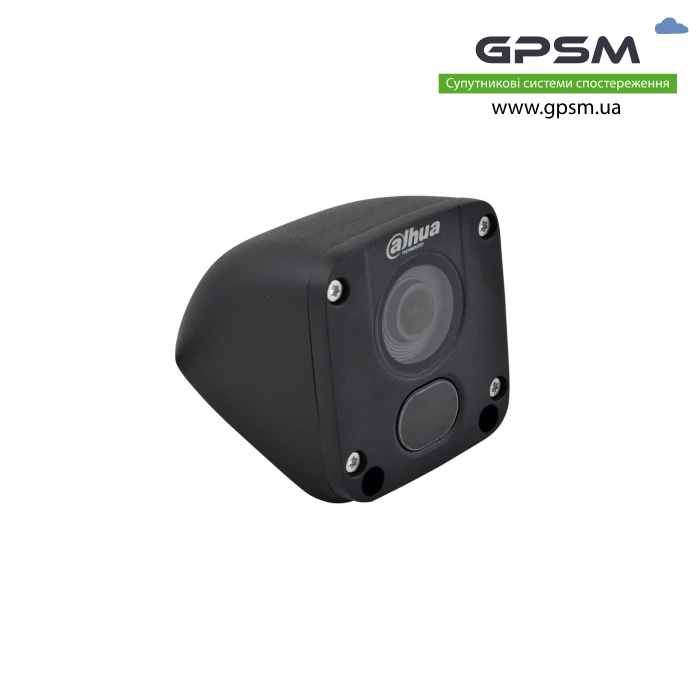

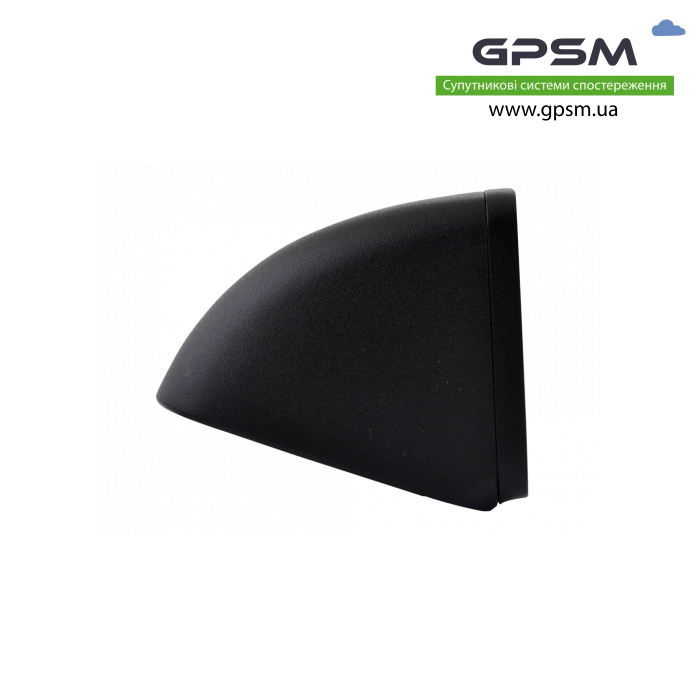

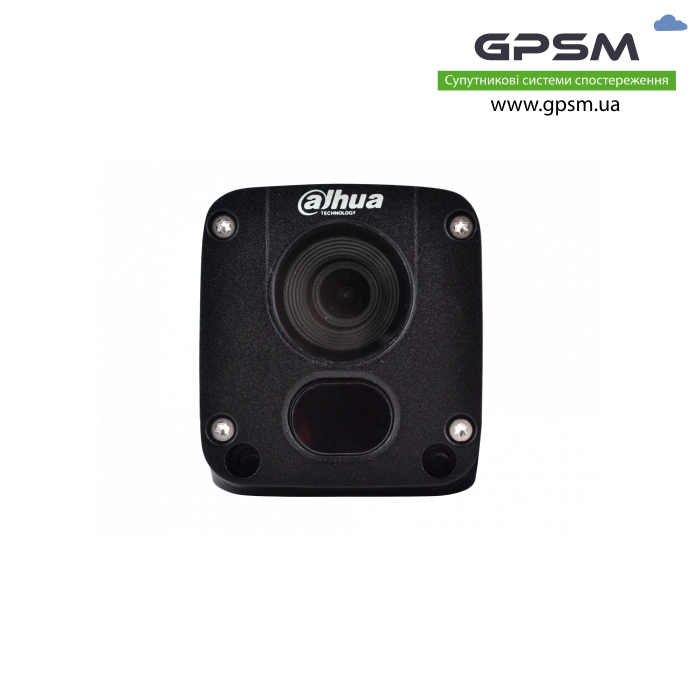

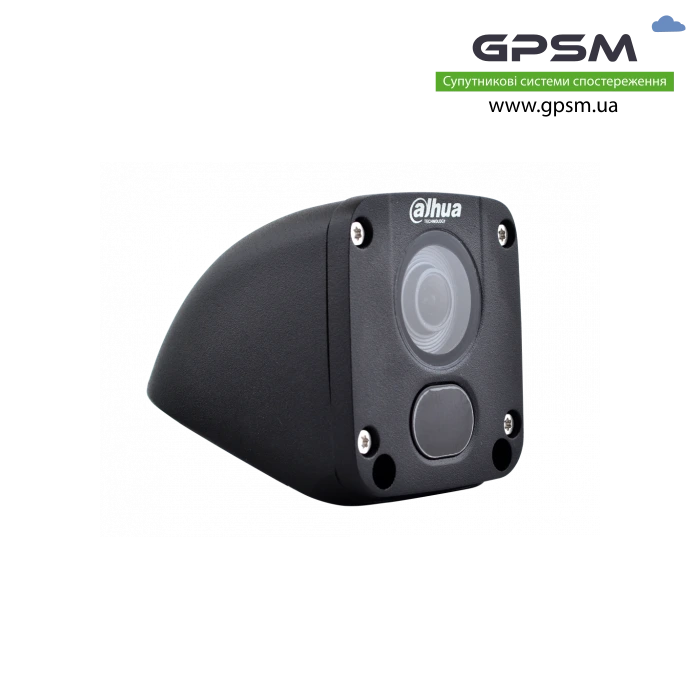

The IP camera for the mDVR module is designed for video surveillance in public (including railway), personal and commercial vehicles. The housing is designed to meet the IP6K9K standard, which makes the device completely dustproof and protected from moisture. Compliance with this class indicates the possibility of use in a high-temperature, humid environment, so the camera can be used in all weather conditions. The device operates on a 12-volt DC network and consumes up to 3.7 watts. It can accommodate a micro SD card.
You can connect the camera to a computer using a router or switching device. You can configure it using special software (for example, the Config Tool utility). The web interface is available in the browsers Google Chrome, IE, Safari, Firefox. In it, you can view both live broadcast and archived videos.
Interesting features of the model:
- Rigid mounts to protect against third-party intrusions.
- Infrared illumination with a single LED with a range of 30 m.

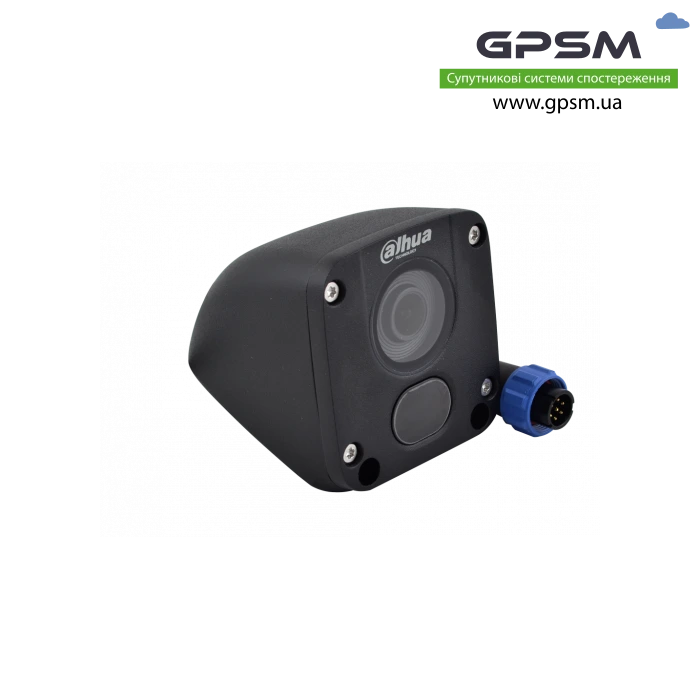

- 6 PIN connector with moisture protection.
- The effective distance for recognition is 8 m, for identification - 4 m. The device can detect objects from a distance of 40 m. It is equipped with a video motion detector and a mirror image option.
- Ability to work at air humidity up to 95%, in the temperature range from -30 to +60 degrees.
- Large viewing angle - 115 degrees. The focus distance is constant at 2.8 mm.
- The ability to shoot in Full HD resolution.
This device is easy to install and use at an affordable price. The body is designed for possible operation in adverse conditions typical for road transport (shaking, vibration, etc.).
Sample image
Documentation:
- BITREK_Connect_A4_EN.pdf
- BITREK_protocol_EN.pdf
- BITREK_IPS_protocol_RU v.2016.10.1.pdf
- Bitrek_Configurator_1.13.1b.zip
- Connect Configurator v.2.14.7 (libs from 15.02.2021).zip
- WIALON.pdf
Specification | |
Humidity | up to 95% |

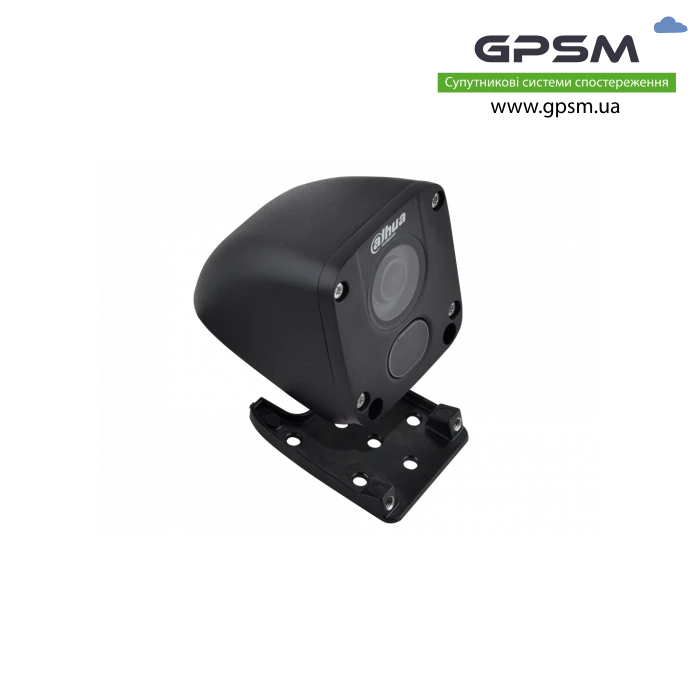

Mounting format | rigid, 2 types (straight and angular) |
Powered | 300mA max |
Power supply voltage | + 12V |
Interfaces | SP1311 / S7 power connector |
Water and dust protection | IP67, IP6K9K |
Operating temperature | -30º + 60ºC |
Video camera | |
Focal length | 2.8 mm |
Horizontal viewing angle | 115 ° |
Infrared illumination | with a range of 30 m |
Lens type | fixed 12x0.5 |
Resolution | Full HD 1920x1080 |
Sensor model | 1/2.7” 2Megapixel progressive scan CMOS |
Video format | digital, codec H264, H265, RTSP protocol, 25FPS |
Matrix | 1 / 2.7 |
