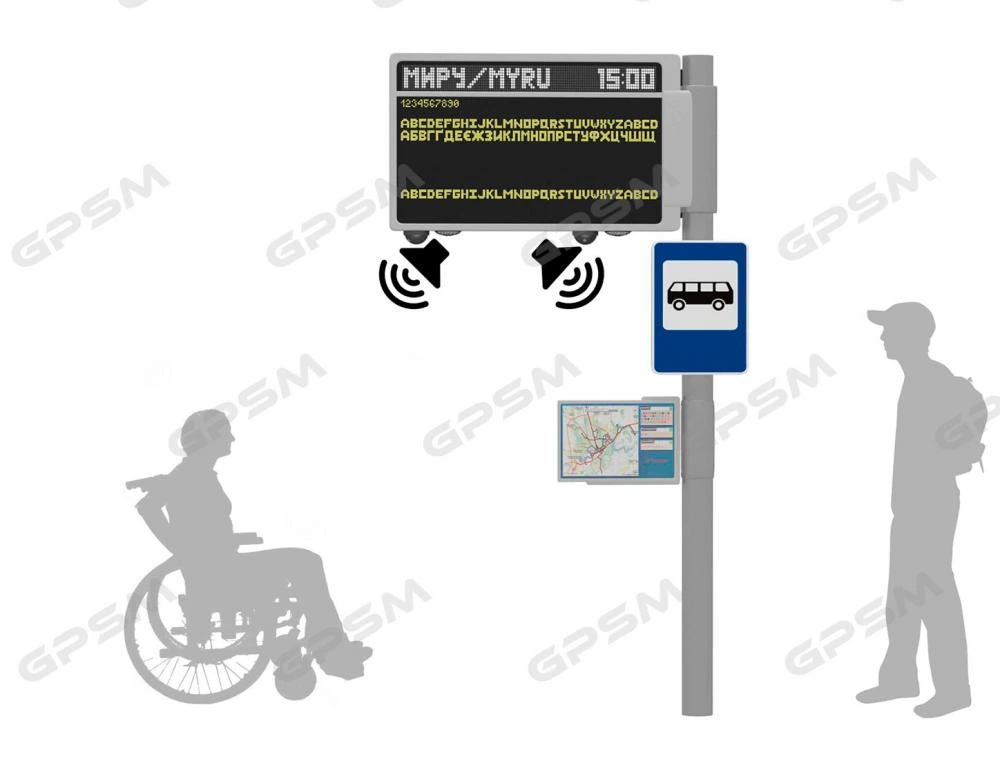

Electronic checkpoints with forecasting time of arrival of transport

The system has three displays:

Displays with stop names (white).
Multifunctional and multipurpose color display for displaying real-time traffic transport, other socially useful information.
Main display displaying up to 40 letters wide and 5 rows (yellow color).

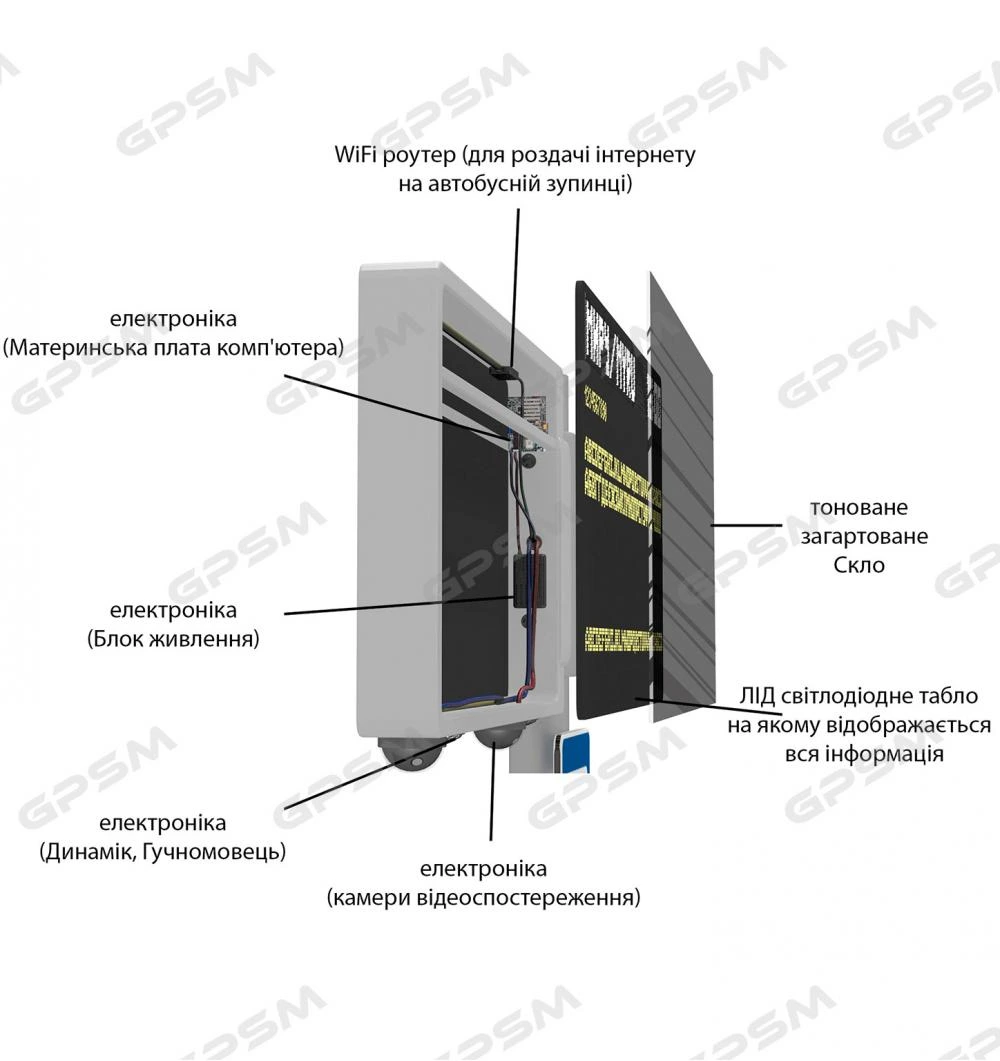

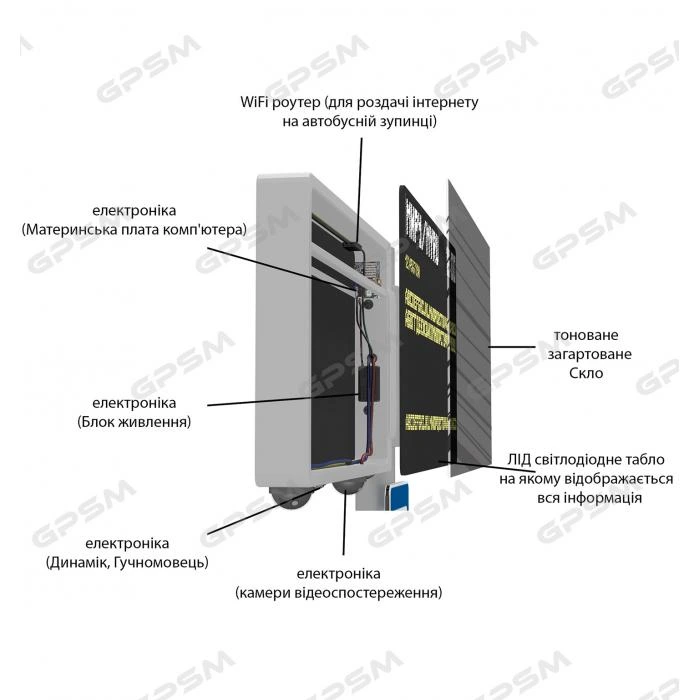

Components of the scoreboard:

№	Parameters	Characteristics
1	Housing	Metal, anti vandal.
2	Case, color	Gray with primer and dyed painted paint.

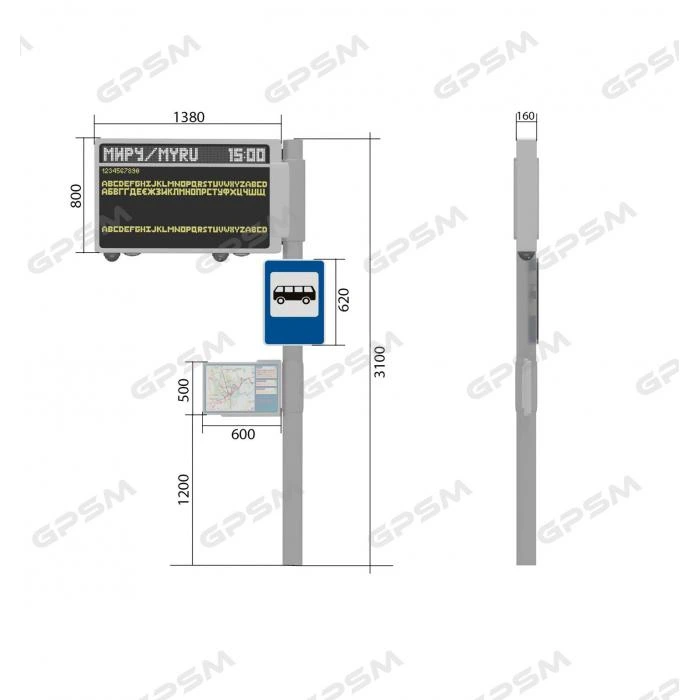

3	Body, dimensions	Width 1380mm, height 800mm, thickness 120mm.
4	Glass, performance	Well-stocked
5	LED panel	The distance between the LEDs is 4mm. Horizontal input of not less than 40 characters, the size of each of which: height 80mm, width 40mm. Number of rows - at least five.
6	LEDs Color	Yellow.
7	Stop name	Two languages (optional).
8	Name of stop, illumination	LED
9	Name of stop, illumination, color	White
10	Controller	Built-in computer software, monochrome, monochrome type of supported modules, the ability to connect humidity and temperature sensors.
11	Controller, control interface	ETHERNET and USB
12	Controller, outputs	2хHUB8, 4хHUB12
13	Controller, supply voltage	5V
14	Controller, update information	At least 1 time in 10 seconds
15	Controller, Synchronization	GPS Vehicle Tracking Software
16	Годинник, розміщення	Верхня ліва частина.
17	Clock, accommodation	Top left part.
18	Power supply of LED panels, power	Not less than 200W
19	Power supply for LED panels, outputs	12V and 5V
20	Router	Mikrotik RB2011 UiAS-2HnD (Atheros AR9344 600 MHz, 4 dBi, SFP, 128 mB RAM, LAN, Wi-Fi 802.11 b/g/n/, USB, PoE).
12	Diffautomat	CHINT NBH8LE-40 1P+N 2A – 30 mA.
13	КSurveillance camera	Hikvision DS-2CD2142FWD-IS (2 pcs per display)
14	Own stand of electronic scoreboard	Metal with flange for fastening to mortars and a shelf for mobile devices.

Mounting kit;
Seals (stickers) that collapse when attempting to interfere;
A technical passport or similar document;
Warranty letter for maintenance of equipment for a period not less than 12 months from the moment of its commissioning.
RFID e-ticket reader.

A person connects to a WIFI network
After connecting to the free Wi-Fi network, regardless of the selected web page, the user is redirected to the authorization form (you must enter the phone number, the name of the person, after the authorization, the SMS will come to the phone and access to the Internet will be provided)

The order and schedules of traffic on the line, the mapping of urban transport lines.
Broadcasting video.
Display of social advertising and news.
Advertising.
Image advertising of the city.
