Teltonika FMB125

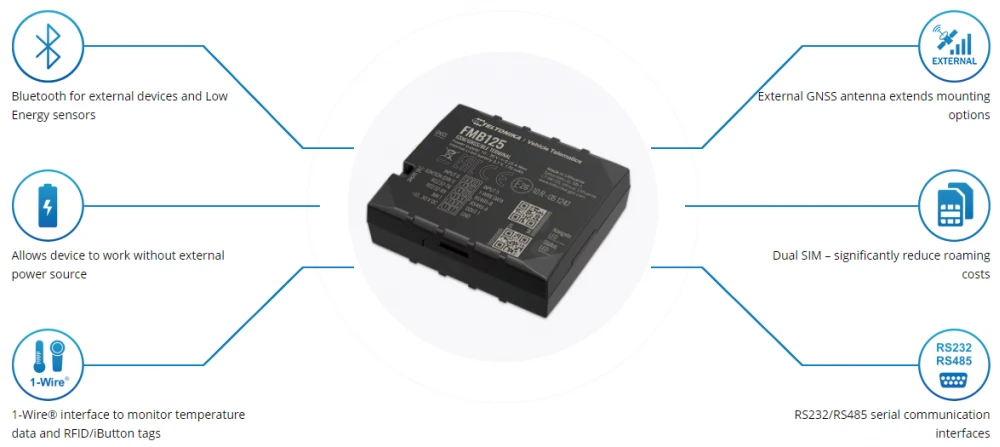

FMB125 is a compact GPS / GSM tracker with internal high gain GSM antenna and external GNSS antenna.

Teltonika FMB125 image 1

The purpose of the device is to collect navigation coordinates and other information from the car and then transfer this information via the GSM channel to the server. The scope of application is extensive: fleet management, car rental, taxi services, urban transport, cargo transportation, logistics, tracking personal vehicles for various purposes. Allows you to control how the engine works, the car doors close.

FMB125 tracker can work with devices such as fuel sensors (LLS), RFID readers, Garmin navigation systems, via RS232 and RS485 interfaces. Connection of CAN adapters is possible. Supports Bluetooth, has a backup battery.

FMB125 belongs to the most reliable car tracking devices, which is provided by the new generation of GSM / GNSS modules and the ability to support 2 SIM cards. The tracker will remain online, even if one of them does not work, and in roaming mode, a dual SIM card will help save money.

Interesting model features

Also, FMB125 tracker has other interesting features, namely:

  1. High sensitivity. Fast cold and hot start, which allows you to count on the most accurate and simple trip tracking.
  2. Support for 3 modes of operation - "home region", "roaming" and "unknown", blacklist of operators. Playback is carried out online, constant communication with the server. There are time synchronization modes if there is no signal, and a GPRS connection algorithm in order to save traffic.
  3. Very compact and easy to install and manage tracker, while smart collection of information based on distance, time, speed data. Control of the start and end of movement, detection of failures and excessive idling.
  4. It is possible to receive information from CAN-buses of more than 1800 models of transport: cars and trucks, buses, agricultural vehicles.
  5. Support for Bluetooth 4.0 + LE, so you can connect a headset, temperature sensors, humidity and others.
  6. Various options for built-in scenarios: overspeeding, which guarantees the safety of the driver and prevents the accrual of fines, identification of a person behind the wheel, auto-geozone, immobilizer, towing detection, fuel consumption calculation, GSM signal blocking, accident detection.

Connection diagram

Teltonika FMB125 image 2

Contacts on FMB125 device

Teltonika FMB125 image 3

Teltonika FMB125 image 4

PIN NUMBER PIN NAME DESCRIPTION
1 VCC (10-30)V DC (+) Power supply (+10-30 V DC).
2 AIN 1 Analog input, channel 1. Input range: 0-30 V DC.
3 RS232-RX Input for data reception through RS-232.
4 RS232-TX Output for data transmission through RS-232.
5 DIN 1 Digital input, channel 1.
6 INPUT 6 TX EXT (LVCAN – TX).
7 GND (-) Ground.
8 DOUT 1 Digital output, channel 1. Open collector output. Max. 3,3 A DC.
9 RS485-A Signal wire A for RS-485.
10 RS485-B Signal wire B for RS-485.
11 1WIRE DATA Data for 1–Wire devices.
12 INPUT 5 RX EXT (LVCAN - RX).

Documentation

Manual for FMB125

  1. FMB125 Quick Start Guide.
  2. Characteristics.

Drivers and software

  1. COM Port Driver
  2. FMB125 configurator
Specification
GPS module Number of channels 33
Sensitivity -165 dBm
Humidity 5% to 95% non-condensing
Accuracy < 3 m
GSM module Quad-band 850 / 900 / 1800 / 1900 MHz
Coordinate time “Hot” start <1 sec
Warm start <25 sec
“Cold” start <35 sec
Data channels GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Technology GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Capacity built-in battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power supply voltage 10 - 30 V DC with overvoltage protection
Interfaces Digital Inputs 1
Digital Outputs 1
Analog Inputs 1
CAN Adapter inputs 1
1-Wire 1
RS232 1
RS485 1
GNSS antenna External (SMA connector) / internal (optional)
Cellular antenna Internal GSM High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM - Dual SIM
Water and dust protection IP41
Current consumption (12V) At 12V < 6 mA (Ultra Deep Sleep)
At 12V < 6,5 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 12 mA (GPS Sleep)
At 12V < 38 mA (nominal)
Memory 128MB internal flash memory
Bluetooth 4.0 + LE
Weight, g 55 g
Operating temperature -40 °C to +85 °C
Dimensions (W x D x H) 65 x 56,6 x 20.6 mm (L x W x H)
Related Products

Tags: Professional, Autonomous, Reliable, Personal, Smooth, Compact, Dual SIM, Bluetooth, Battery Backup

2 449 грн
  • Brand: Teltonika
  • Product Code: Teltonika FMB125
  • Availability: In Stock
  • Guarantee: 12 months

+ -
