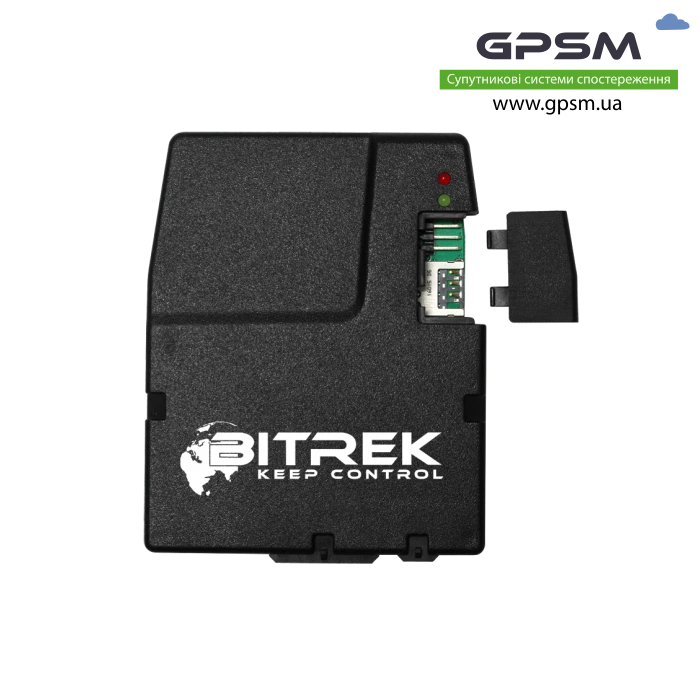

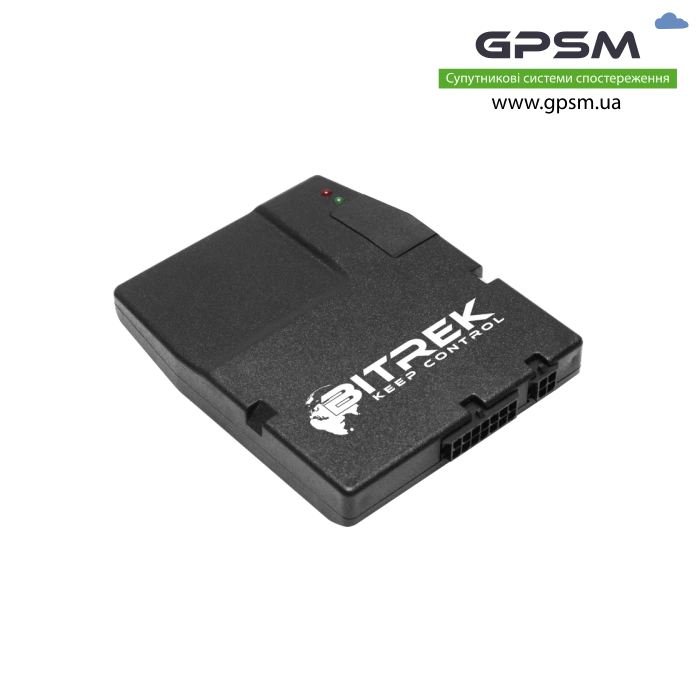

BI 530C TREK is a special purpose tracker designed to connect various peripheral devices, as well as monitor and control the dynamics of object parameters. In addition, it is installed on any objects, not necessarily vehicles, moving or stationary, for which it is necessary to monitor the condition.
Interesting model features
The functions of the device are to determine the characteristics of an object, such as speed, geographical coordinates, direction of its movement, acceleration. The collection of coordinates is carried out according to the algorithms of the time interval, changing the angle of the direction of movement and distance. In addition, the BI 530C TREK tracker collects information from sensors installed at the facility and transmits them over the network to servers. An additional function is the implementation of the passive engine blocking mode as an immobilizer.
The memory capacity is 2 MB and can accommodate 50,000 records in non-volatile mode. Its memory is powered by a built-in battery. If there is no connection or the network is not available, the BI 530C TREK tracker writes data to the internal memory, sending them when the signal resumes.
Technical advantages of BI 530C TREK tracker:
- Working protocols - RS-485, j1708, RS-232, 1-Wire, CAN.
- Synchronization of changes in configuration and firmware using the cloud service using FOTA technology.
- GSM network signal jamming detector - jamming mode that sends an automatic message to the server when the network signal is lost.
- Premium protection for power supply circuits.
- Working with universal CANLOG controllers.
- 5 inputs, 2 of which are analog, and the other 3 are discrete, plus 1 output.
- MicroSIM slots.
- Monitoring the operation of the ignition system.
- Memory for 50,000 records.
- Compatible with all modern types of software.
- Overvoltage protection in the vehicle electrical system.
The BI 530C TREK tracker has the ability to connect to a personal computer for configuring via a UART output. This will require an additional USB-UART converter, which is not included in the package. Drivers for it can be downloaded on the developer's website. Access to the configuration should be limited by a password.
Other ways to configure the BI 530C TREK monitoring device are to change using a set of SMS tasks and using commands from the configuration server. The device can also receive SMS from authorized phone numbers pre-registered in the device's memory. BI 530C TREK tracker is suitable for any type of transport - automobile cars, trucks, railway, and agricultural equipment. It is not only used for water transport. With high performance, its price is quite affordable.
Documentation:
| Specification | |
| Humidity | 80 % at +30 °C |
| GSM module | GSM 900/1800 |
| Technology | LBS, GPS/LBS, GPS/GLONASS |
| Capacity built-in battery | 130 mAh |
| Power supply voltage | up 9 В to 36 В |
| Interfaces | RS-485, j1708, RS-232, 1-Wire, CAN, Micro-SIM |
| Water and dust protection | IP 54 |
| Memory | 2 MB (or 65,000 records) |
| Weight, g | 140 g |
| Dimensions (W x D x H) | 77х96 х14 |
Tags: Standalone, tracker, motion sensor, control, monitoring, compatibility, engine blocking
