Магнитный датчик типа геркон “BLUE PUCK MAG” - контролирует открытие дверей или срабатывание механизмов, при приближении магнита к датчику. Данный датчик подключается по Bluetooth к трекеру. Если магнита рядом с датчиком нет - передаётся логический «0», а если магнит поднесли к датчику, на трекер передаётся логическая «1».
Brief description
Teltonika is a specialist in creating tracking devices and is committed to using innovations. This company constantly offers the latest solutions to its customers. To increase the coverage of the number of business tasks, a new product has been produced that supports Beacons BLUE tags.
A device with a magnetic contact Teltonika BLUE PUCK MAG monitors the position of the door (open or closed), hood and similar objects. Additionally, a magnet must be used with this sensor. Information is sent when the magnet is connected or disconnected.
Device Capabilities
Bluetooth Magnetic Sensors are small signal transmitters with configurable signal strength and data transmission intervals. The sensor supports the latest Bluetooth 4.0 LE technology for long distance data acquisition and has a long battery life of up to 60 months. BLE technology makes it possible to work with any mobile standard. The NFC chip provides flexibility and ease of programming and proximity detection. The collected data can be sent to your server or IoT platform using the MQTT protocol.
With new technology the device is capable of responding to the movement, the change in the position of objects in space and record all movements.

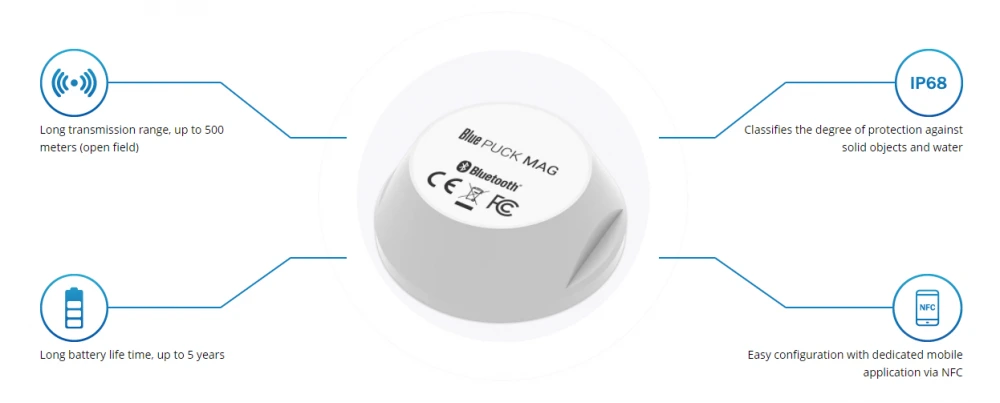

Among the interesting features of the sensor are the following:
Impressive transmission distance: the sensor can guarantee excellent data transmission up to 200m away without interruption in open areas.
Long battery life. The sensor can work up to 5 years without additional charging and on one battery.
Strong safety record. Well protected against dust and water, IP68 class.
Thanks to reliable and high quality materials, the model has a long service life.
The device can be easily configured using a dedicated mobile app via a secure NFC signal.
List of devices compatible with this accessory:
- FMC125
- FMC130
- FMM125
- FMM130
- RUTX11
- RUTX10
Files to download:
Comparison of the dimensions of the old and new sensor modifications:
| Old version | A new version |
|
|
| Old PUCK model | NewPUCK model |
|
|
| Specification | |
| NFC | Supported |
| Standards | CE (Europe) *: EN 300 328 / EN 301 489 & EN 55032 / EN 62368-1
FCC (USA) *: FCC 15.247 / FCC PT 15B ISED / IC (Canada) *: RSS-247 / ICES-003 RoHS certified (*) Certification in progress |
| Transmission distance | up to 500 meters (open space) |
| Transmission period | 0.1 to 10 seconds (configurable) |
| Water and dust protection | IP68 (waterproof) |
| Bluetooth | 2,4 GHz - Bluetooth Low Energy 4.0 / 4.2 |
| Weight, g | 36 g |
| Operating temperature | from -40 ° C to + 85 ° C |
| Dimensions (W x D x H) | Base diameter - 57 mm
Thickness - 18 mm 2 mounting holes with a diameter of 4 mm, Spacing between fixing holes - 49 mm |
| Main | |
| Battery Capacity | Lifecycle up to 5 years |
