Speed scoreboard SSR-2

Scope of the "speed board"

The SSR-2 speed display is designed to measure and display the speed of an approaching vehicle, reminding the driver to slow down and creating a buffer zone for braking.

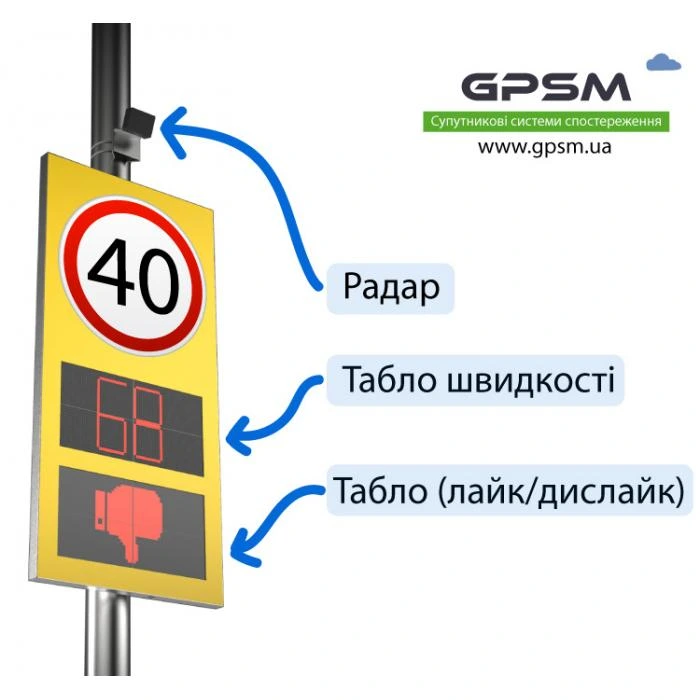

The package includes:

1. Placard with 2 color displays. The first is to display the speed, the second is to display a like 👍🏻 or a dislike 👎🏻 (you can also set different emoticons that will appear depending on the speed of movement - 🙂 ☹).

2. A set of fasteners for a pole, electrical supports.
3. Mountable radar.
4. Uninterruptible power supply system (provides autonomous operation up to 18 hours) - purchased separately.
5. Solar battery - provides autonomous operation of the device during the daytime - purchased separately. Together with a battery, it can provide autonomous operation at night.

Main characteristics

• Board visibility up to 300 m.
• Measurement range: up to 120. Optionally equipped with a radar with a measurement range of up to 300 meters (cost + UAH 5600 for a radar with a range of up to 300 m).
• Supply voltage 180-240 V, 50 Hz.
• Radar frequency 24.15 GHz (K-band).

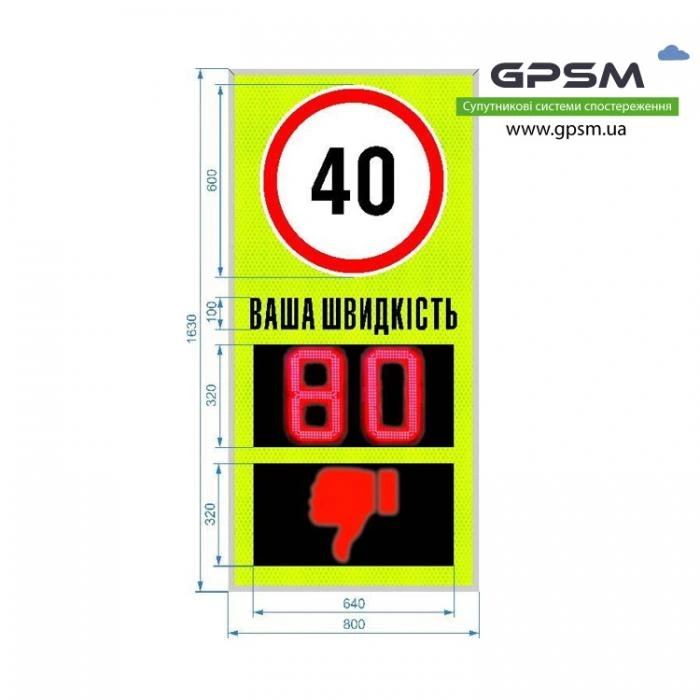

• The display uses digital characters with a minimum height of 300 mm.
• Range of measured speeds from 1 km / h to 300 km / hSSR-2

Camera for video and photographic recording of violations

The SSR-2 display has a built-in 12MP camera with optimal optical zoom, which records the moment when the vehicle exceeds the speed limit in a photo or video (+ text data).

All received data is stored on the server, in the built-in memory of the scoreboard or sent to a private Telegram channel.

The files can be accessed:

• through a direct connection to the scoreboard;

• connection to the server;
• on the Telegram channel;
• with the help of the program we provide.

A system for automatically turning on a red traffic light for an overspeed vehicle.

Installed on roads in villages. If the driver exceeds the speed, the radar installed 300 meters before the traffic light fixes the excess, shows the excess to the driver and sends a signal to the upcoming traffic light, which turns on the red light forcibly stopping the driver who has exceeded the speed.

The system instantly improves driving culture and speed compliance.

First, the driver knows that in case of speeding, the traffic light will switch to red.

Secondly, having exceeded the speed, the red light turns on both for passing traffic and for oncoming traffic. Drivers who did not exceed the speed upset because they turned on a red light due to the fact that the oncoming driver exceeded the speed - they show with gestures that the gondolier (he is a rider, he is a "driver") is not right and politely asked not to exceed the speed next time, so as not to interfere with the movement of conscious drivers.

Also, for safe and efficient passage of industrial vehicles without reducing speed, GPSM SSR-2 complete with traffic lights will automatically switch traffic lights to red light of vehicles crossing the technological road.

After the vehicle has passed, the green light will turn on.

LED display

The intensity of the LEDs is automatically controlled to optimize the illumination intensity during daytime, nighttime and in adverse weather conditions. At the same time, LEDs provide the visibility of the image (numbers and pictures) in the brightest sunny season of the day.

The display has three colors of the digital row: green, yellow and red for information output (speed) depending on the settings, as well as two image colors: green and red.

Displaying information on displays

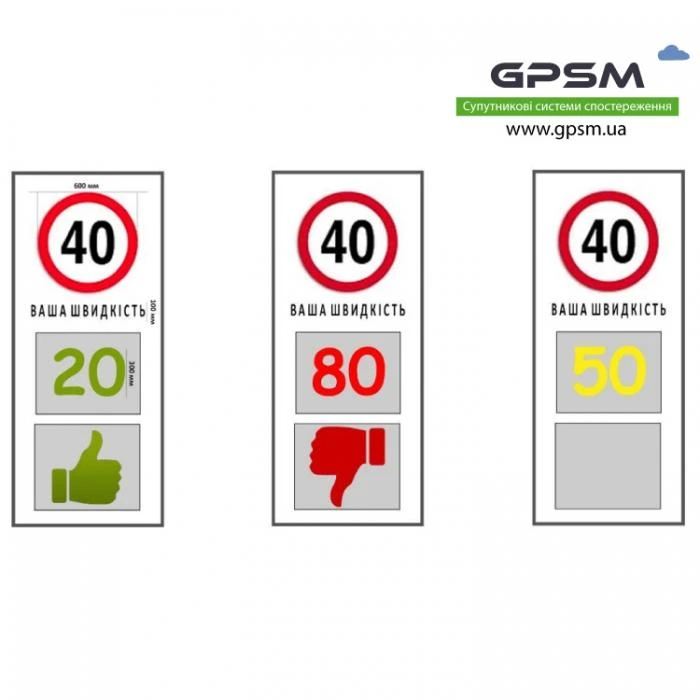

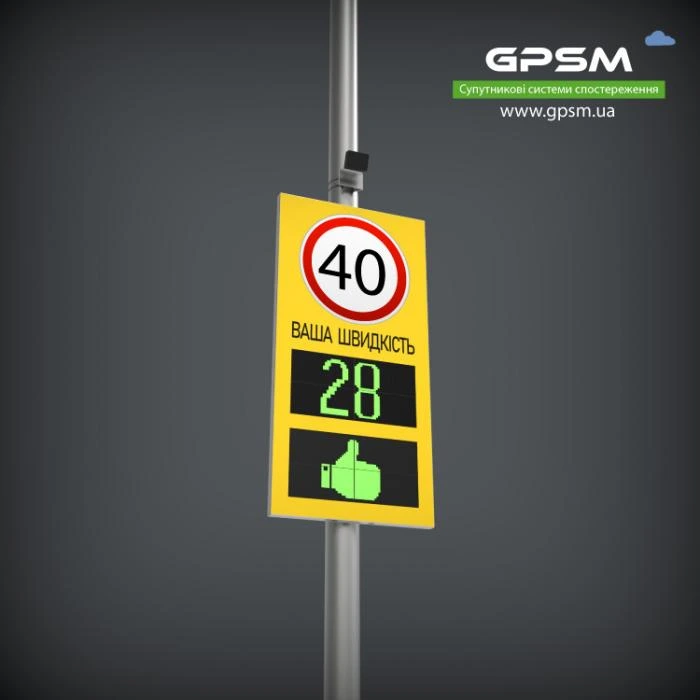

The first display is digital, showing the speed of the car, the second is a picture (animation), where the green color indicates "likes" (when the speed is acceptable):

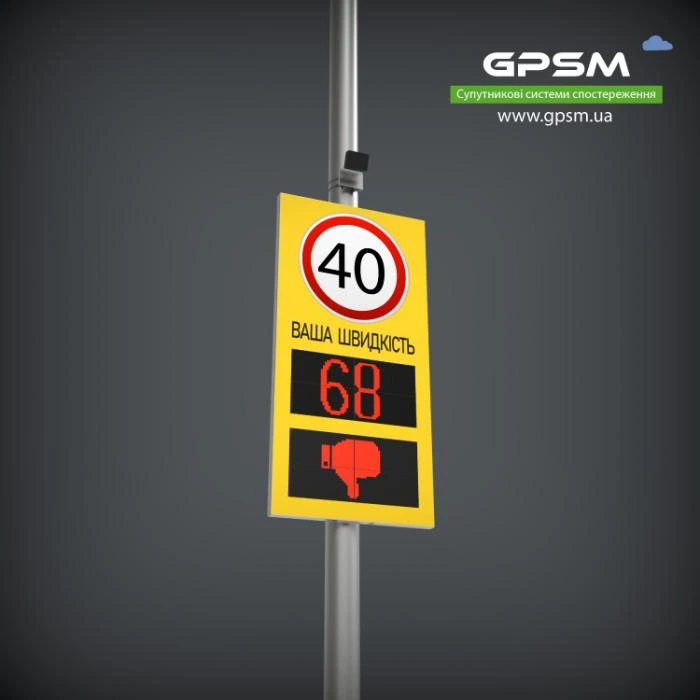

red color denotes "dislike" (when overspeeding):

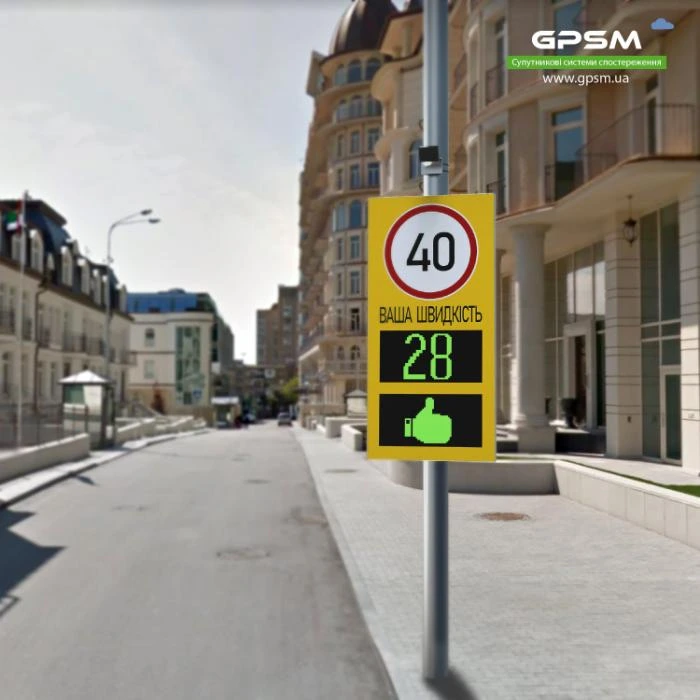

Permissible speed up to 40 km/h inclusive is indicated in green.

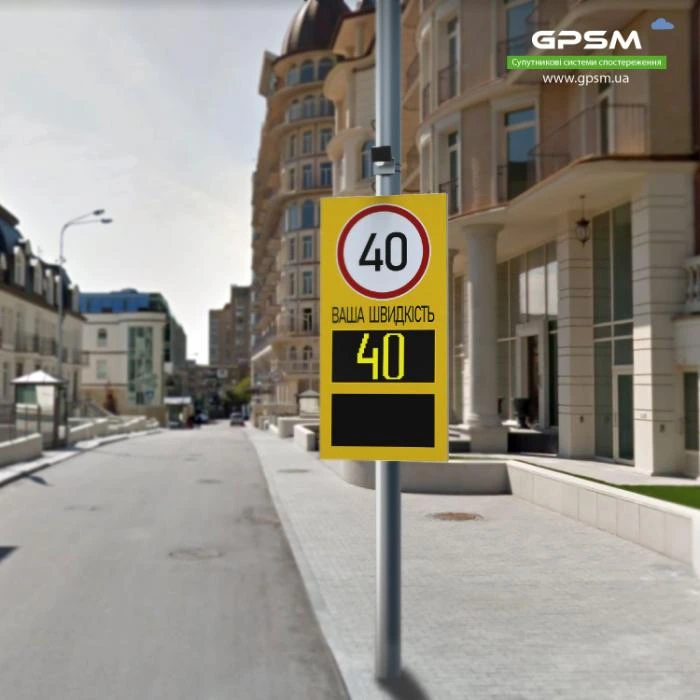

Slight speeding up to 50 km/h inclusive is indicated in yellow.

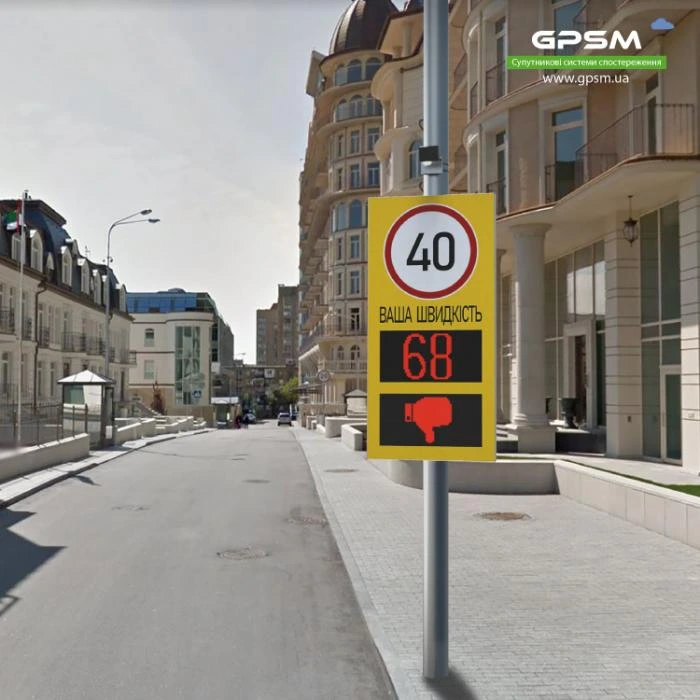

The speed exceeded above 50 km/h is indicated in red.

Compliance with DSTU standards for speed radar

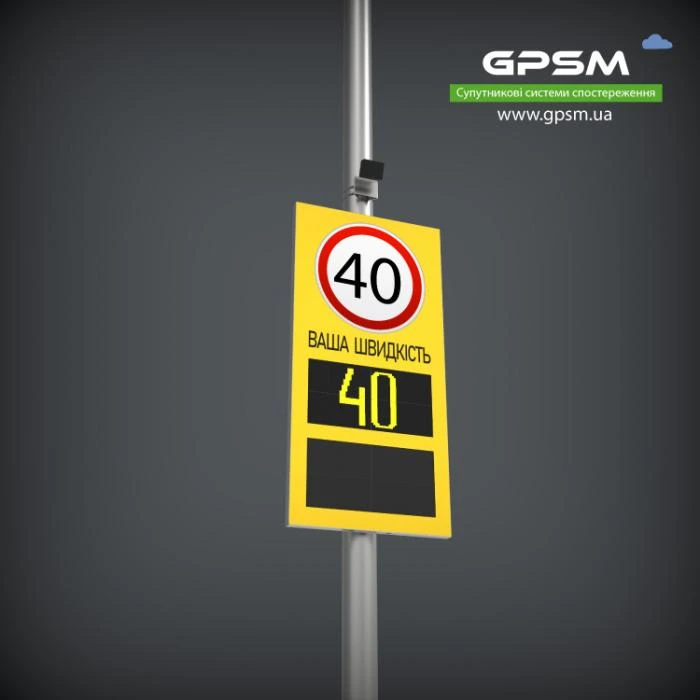

The speed feedback display for the driver (hereinafter - the "display") and the sign meets the requirements of DSTU 4100: 2014 "Road signs. General technical ideas. Rules for storing "and provides for displaying feedback on the bottom of the scoreboard, has a printed inscription YOUR SPEED in black letters 100 mm high on a light background above the display on the front panel of the scoreboard.

Road sign 3.29. The maximum speed limit of 40 km/h meets the following requirements. Any speed limit can be specified by the customer before delivery.

The speed limit sign is readable in accordance with GOST.

The height of the radar is usually 3 m:

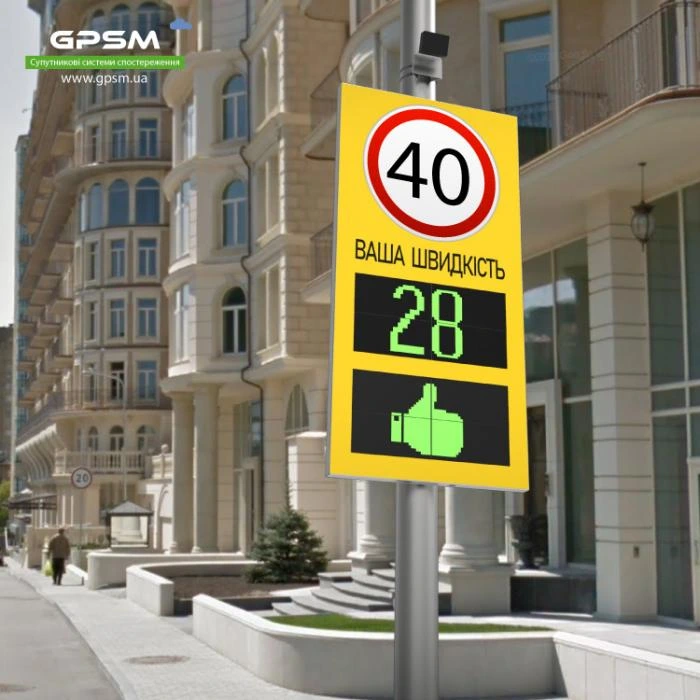

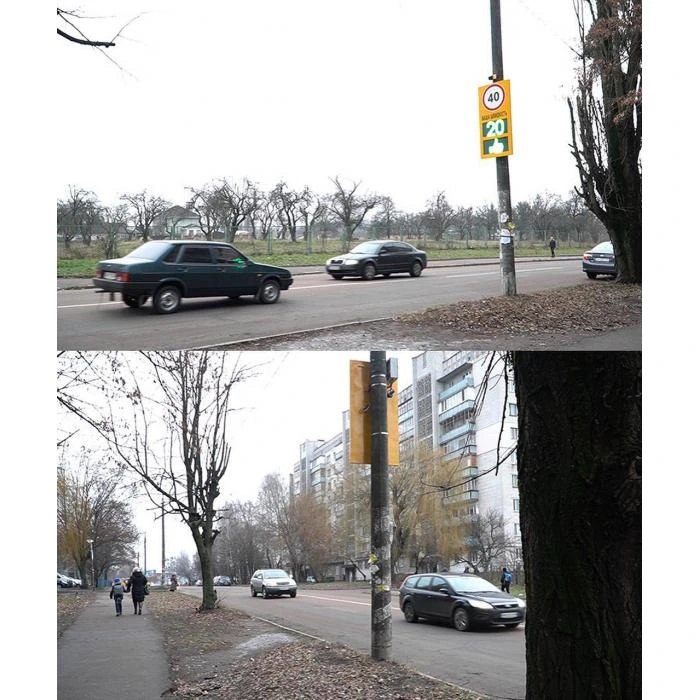

Example of installation:
