Shelf 100-2 VK

Shelf 100-2VK is a dispenser for dispensing light oil products, capable of operating at various types of gas stations. The product provides the user with the maximum level of comfort, reliability, and fuel distribution accuracy. The products are the most affordable and in demand among the owners of commercial or in-house gas stations.

This fuel dispenser is a two-way fuel dispenser equipped with two dispensing hoses. The distribution of petroleum products is carried out independently, via a separate pipeline. The maximum performance of the dispenser reaches 50 l / min in the basic configuration, and 90 l / min when the high-speed channel is connected. Thanks to the possibility of electronic calibration, the error in fuel delivery does not exceed 0.5%.

Wiring diagram

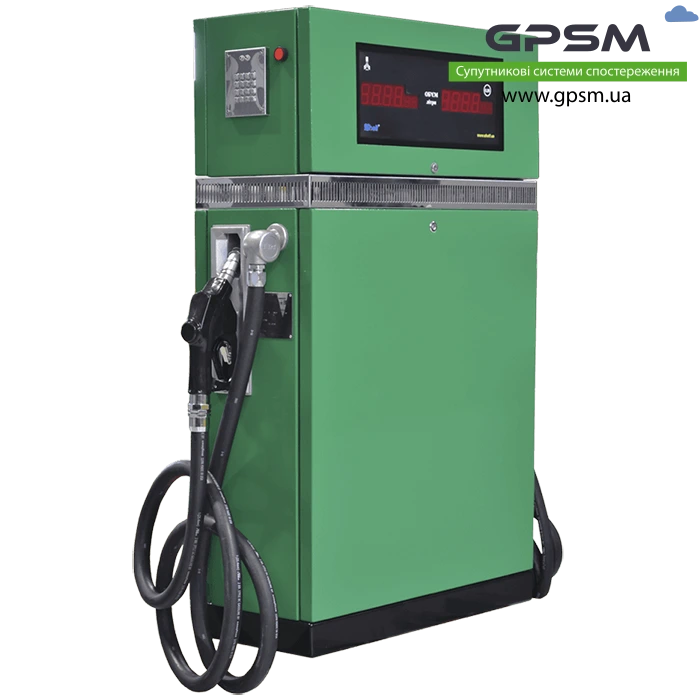

Shelf 100-2 VK image 1

The design of the fuel dispenser is as simple as possible. The main frame houses the hydraulic and electrical Shelf. Depending on the purpose, the package includes centrifugal pumps with a shut-off valve, filter and gas separator, 3-phase electric motors, 4-piston volume clamps. If necessary, Shelf 100-2VK can be equipped with external pumps or an additional satellite rack.

The hose part includes 2 dispensing lines connected to an automatic or manual dispensing system. The main component of the electronic part is an electronic counting unit (ESB), which records data from the pulses received from the sensors. Also included is a control unit that transmits commands to the main units (pumps, valves, blockers, etc.).

Electrical connection diagram

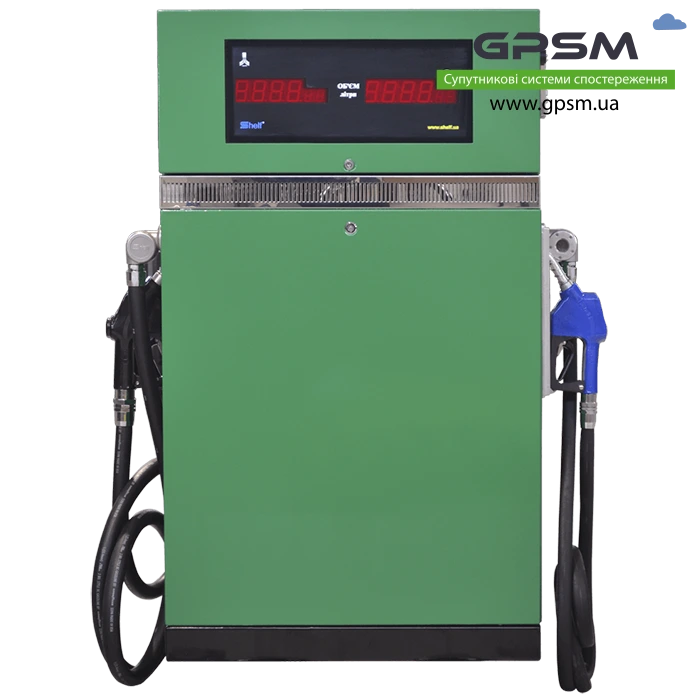

Shelf 100-2 VK image 2

A sturdy frame made of steel has been chosen as a supporting element. The fuel dispenser body consists of side doors equipped with a locking mechanism and vertical posts. Copper or aluminum piping is used to connect the monoblock and the volume meter. The main elements of electrical equipment are supplied to the distribution column by means of cables. Electricity is supplied by means of a separate switch located in the power cabinet.

Fuel dispenser standard colors

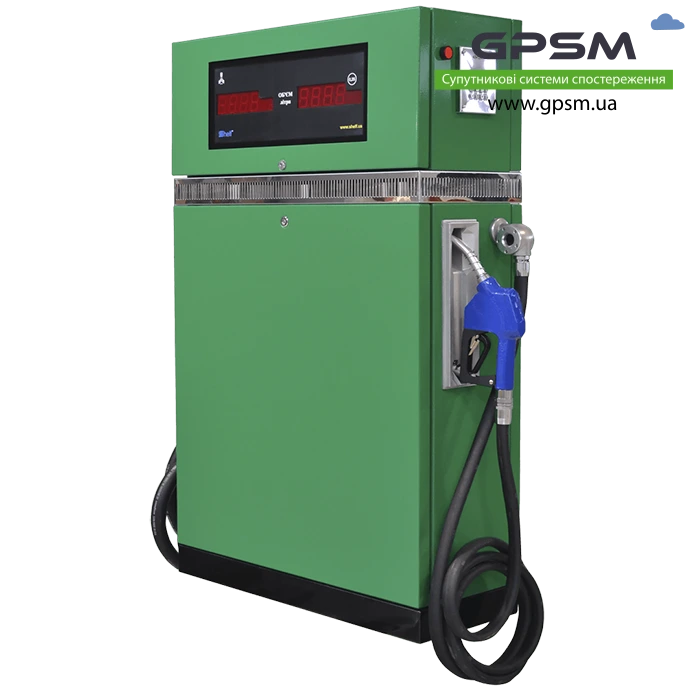

Shelf 100-2 VK image 3

Equipment advantages

  • affordable cost;
  • unpretentious operation;
  • economical maintenance;
  • advanced hydraulic and electronic system of our own production;
  • high degree of protection of electronics from unauthorized access.

A wide range of configurations for the Shelf 100-2VK fuel dispenser allows you to quickly select the necessary settings and equip the filling station with the use of advanced technologies. The main components of the products are resistant to adverse environmental factors, safe, and thought out to the smallest detail.

Thus, Shelf 100-2VK is an efficient and practical equipment for dispensing light oil products. It has become in demand due to its high measurement accuracy, reliability, and durability.

Standard complete set:

  • Monoblock pump
  • Bellows flexible connector
  • electric motor 380V
  • volume meter
  • Dispensing crane OPW type
  • Thermo and oil resistant Continental hose
  • led display
  • Dallas dongle

Additional equipment:

  • Backlit liquid crystal display
  • electric motor 220V
  • satellite
  • High-speed channel with a productivity of 90 l/min.

Documentation

Certificates

Fuel dispenser specifications
Nominal productivity, l/min 50/90
Error ±0,5%
Minimum dose of fuel delivery, l 2/10
Number of taps 2
Electronic calibration +
Number of pumps 1-2
Type of fuel gasoline, dp, biodiesel (100%) or E15
Working temperature -25/+55°С
Powering 230/400V +/- 10%, 50 Hz+/- 2Hz
User identification ЕК Dallas
Hose length, m 4
Display LED 4+2 characters
Total fuel counter Electronic 12-digit
Single dose counter capacity 9999,99 l
Dimensions H*W*D, mm, no more 1460/1050/400
Dimensions with packaging H*W*D, mm 1650/1050/760
Weight, kg, not more 195
