Shelf 200-5

Shelf 200-5 image 1

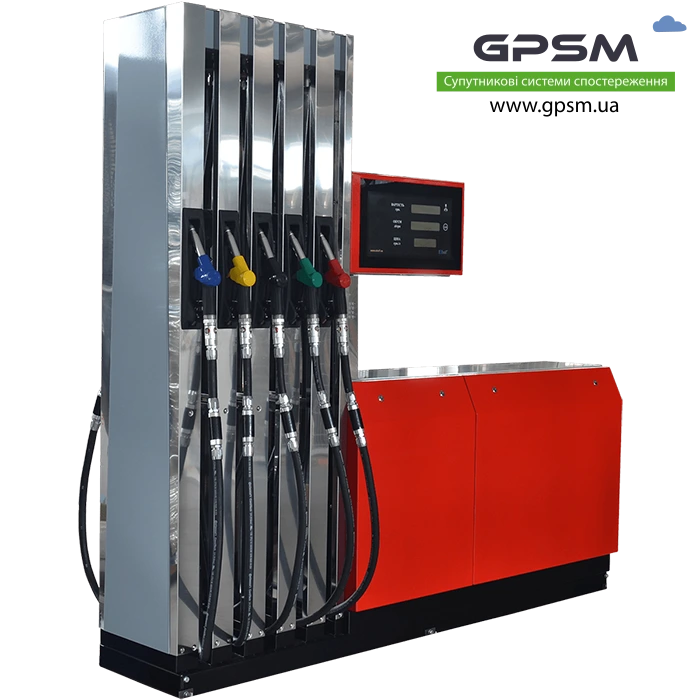

The fuel dispenser model "Shelf 200-5" is designed for use in filling stations under awnings and without them. The unit provides simultaneous refueling of two vehicles located on either side of it with one of five types of liquid fuel. When using an additional remote crane (satellite), parallel filling of fuel into two tanks of the vehicle is allowed.

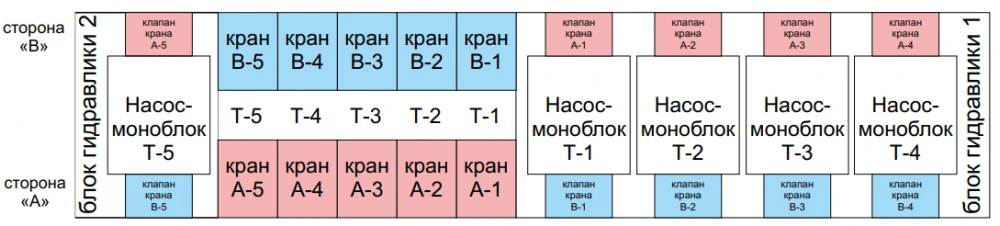

Location of functional blocks

Shelf 200-5 image 2

Composition, technical capabilities and main parameters of the Shelf 200-5

The described filling complex is manufactured in the form of a separate module, inside of which the hydraulic, electrical and electronic parts are located. The equipment is mounted on a solid space frame and covered with steel panels with a polymer coating that is resistant to the external environment. External coatings can be branded. In the basic configuration, the fuel dispenser has the following composition:

  • Monoblock pumping unit.
  • Flexible bellows inlet.
  • Volume meters according to the number of channels.
  • Heat and oil resistant hoses from Continental.
  • Dispensing valves ZVA (pistol-type) with a shut-off valve.
  • Liquid crystal displays and backlighting.
  • Breakaway clutch.
  • Dallas access key is electronic.

The offered column is characterized by high performance and maximum meter error of no more than 0.5%.

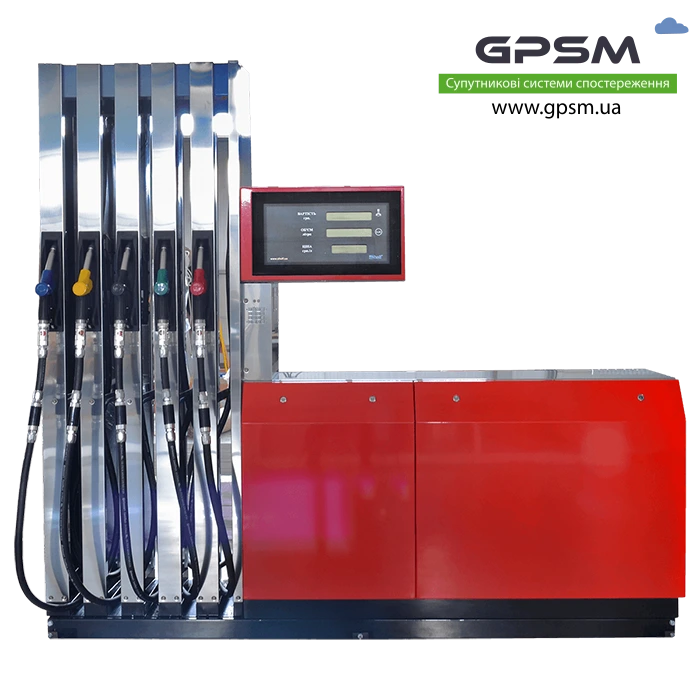

Wiring diagram

Shelf 200-5 image 3

Fuel types: gasoline of different octane numbers, diesel fuel (biodiesel) and kerosene.

It is possible to buy a universal fuel dispenser model "Shelf 200-5" in the basic version. A wide range of additional equipment is also on sale: a remote pumping unit, a high-speed channel and a vapor removal system.

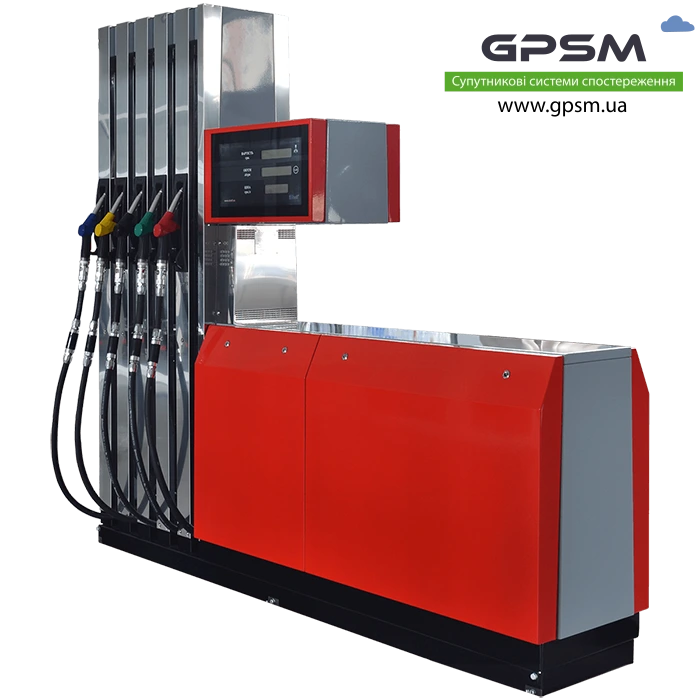

Schematic connection diagram

Shelf 200-5 image 4

Documentation

Certificates

Fuel dispenser specifications
Nominal productivity, l/min 50/90
Error ±0,5%
Minimum dose of fuel delivery, l 2/10
Number of taps 10
Electronic calibration +
Number of pumps 5
Type of fuel gasoline, dp, biodiesel (100%) or E15
Working temperature -25/+55°С
Powering 230/400V +/- 10%, 50 Hz+/- 2Hz
User identification ЕК Dallas
Hose length, m 4
Display backlit LCD / LED
Total fuel counter Electronic 12-digit
Single dose counter capacity 9999,99 l
Dimensions H*W*D, mm, no more 2285/2500/570
Dimensions with packaging H*W*D, mm 2335/2600/760
Weight, kg, not more 620, 490(without pumps)
