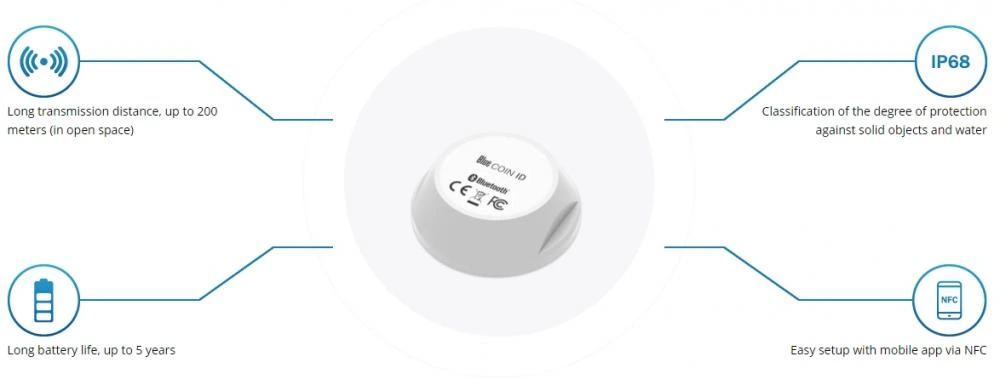

BLUE COIN ID (beacon)

Teltonika COIN ID (beacon) sensor is a wireless device designed to work with a GPS tracker. Communication between them is maintained over an encrypted radio channel using Bluetooth technology.

The device is used to monitor the position of various objects, vehicles or other equipment. The tag can serve as a reliable identifier for the driver or plant personnel.

The electronic circuitry of the device is powered by a built-in non-replaceable power supply and is characterized by extremely low power consumption. The technical solutions used in the production of the sensor provide a wide range of settings for the signal level and intervals between data exchange sessions with the control device.

Interesting model features

The described model of Bluetooth beacon Teltonika COIN ID (beacon) is used to solve a wide range of tasks for tracking the location of vehicles, technological equipment and other devices. The device has the following functionality:

• Identification of company employees, vehicle drivers and other company personnel.
• The sensor provides the ability to determine the exact location of various objects, where the GPS tracker cannot work (in rooms, underground workings or in shielded structures).

• The range of the tag in open areas in line-of-sight conditions can reach 200m.
• The tag supports the NFC technology of contactless payments using the appropriate banking terminals.

• The Bluetooth beacon does not require maintenance throughout its entire service life until the built-in battery runs out.
• The sensor can be attached to any surface using self-tapping screws or by gluing using double-sided tape.
• To turn on sensors or beacons, just use the ELA app.


• The small overall dimensions of the device make it possible to carry it in the pockets of clothes in case of using it as identification tags for employees of the enterprise.

• The device can be used both on static and on moving objects. With its help, it is possible to track movements within a radius of action from the location of the GPS tracker.
• A wireless device installed inside a sealed housing has the ability to remotely adjust the radiation power and time intervals between successive on / off switches.
• High level of protection of the device from external environmental factors corresponding to the protection class IP68. It is impossible for dust and moisture to penetrate inside the case when the lighthouse is immersed in water to a depth of 1 m. At the same time, the device remains operational in an underwater position.
• The built-in battery has an extremely small size and large capacity, its resource is sufficient for the stable operation of the bluetooth tag for 5 years.

Most of the models of car GPS trackers manufactured by Teltonika are capable of supporting at least a hundred COIN ID beacons (beacons) in standard mode.

Specifications

Battery life	up to 5 years
Bluetooth channel parameters	working frequency: 2.4GHz, technology supported: Low Energy 4.0/4.2
Contactless financial settlement technology NFC	supported
Device weight	11 g
Operating temperature range	minimum: -30 ° C, maximum: +70 ° C
Dimensions (base diameter × thickness)	36×10 mm
Number × diameter of fixing holes × distance between them	2×Ø3 mm ×32 mm
Protection class	IP68 (waterproof and dustproof)
Range in open space	Not less than 200 m
Setting range  signal transmission	minimum: 0.1 s, maximum: 10 sec

Documentation

1. Technical information
2. Test instructions
3. Change notification
